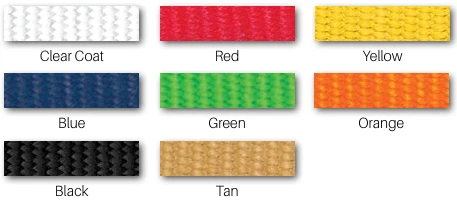

Color Swatch Options

About Magnum

Unique double-jacket Nylon 6.6 hose with a reverse twill weave that reduces friction loss while staying light and easy to pack.

Technical details of Magnum

Scope

Unique double jacket construction, combining the supple high strength of Nylon 6.6 yarn and polyester filament fibers to form a highly abrasion resistant outer jacket and an inner jacket with increased tensile strength and durability.

Jacket Construction

Our proprietary reverse twill weave construction reduces friction loss while ensuring the hose is lightweight, easy to handle and easy to pack.

Abrasion

Hose assemblies shall come standard with the special “Key-Lok” polyurethane based polymer impregnation for added abrasion resistance and ease in identification purposes.

Lining

Thin wall, high tensile, EPDM, dependable, rubber liner provides superior kink resistance and eliminates ozone deterioration while maintaining the lightweight integrity of the hose.

Couplings

Connection options are available to match apparatus and deployment preferences.

Performance and Standards

The minimum burst test pressure, when tested in accordance to NFPA 1961, on all Magnum diameters up to 3" shall be 1200 psi / 82 bar. Meets or exceeds NFPA 1961. UL listing applies by diameter and pressure rating.

Diameter specifications of Magnum

Diameter	Part No.	Service Test	Proof Test	Bowl Size	Weight Uncoupled
11/2"	DN15-800	400 psi	800 psi	115/16"	0.24 lbs/ft
13/4"	DN17-800	400 psi	800 psi	2 1/8"	0.28 lbs/ft
21/2"	DN25-800	400 psi	800 psi	3"	0.42 lbs/ft
3"	DN30-800	400 psi	800 psi	31/2"	0.54 lbs/ft
4"	DN40-600	300 psi	600 psi	41/2"	0.81 lbs/ft
5"	DN50-600	300 psi	600 psi	51/2"	0.90 lbs/ft
