MSA G1 XR SCBA
Detailed product profile covering the G1 XR platform, product specifications, TIC bulletins, battery guidance, and supporting notes.

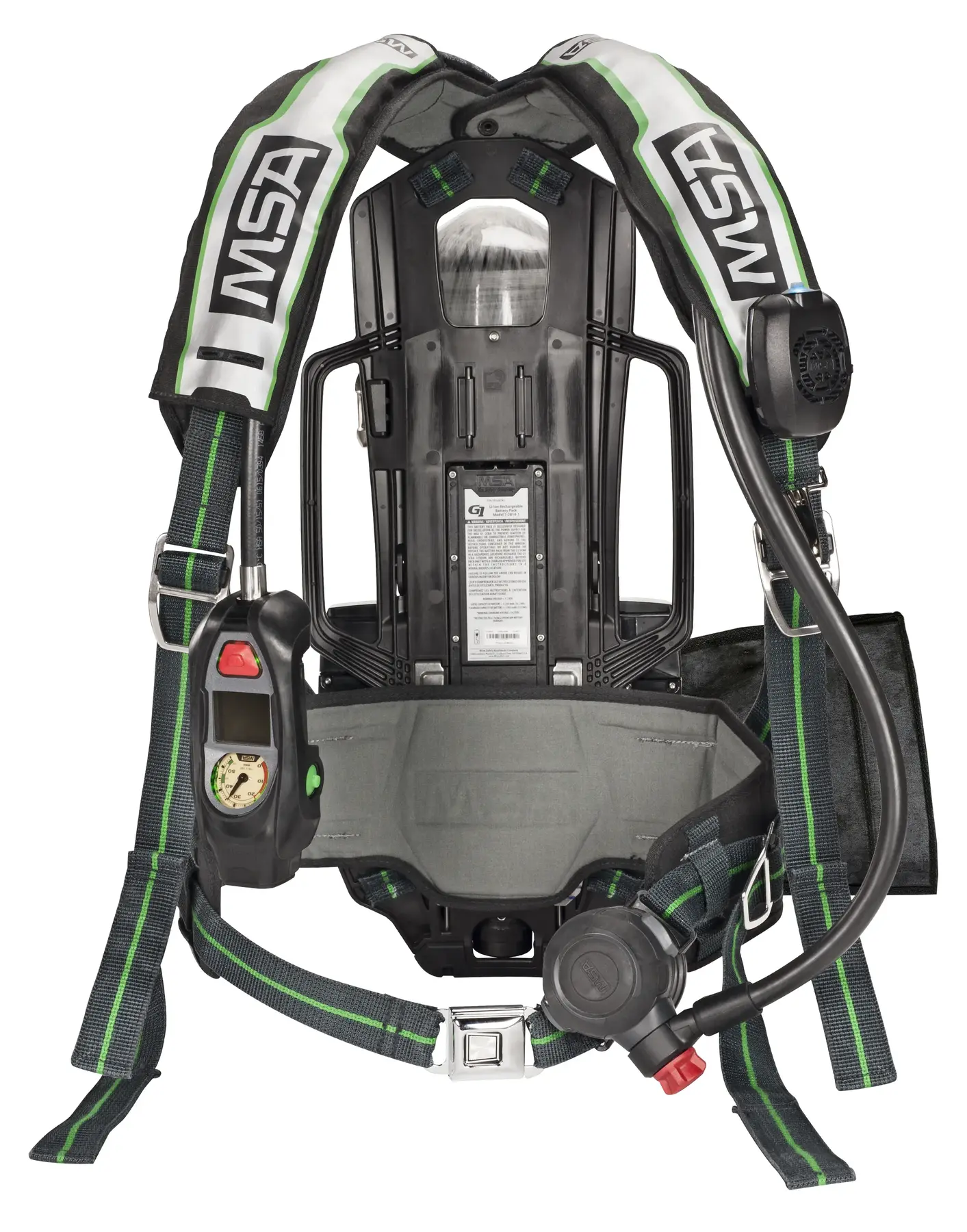

The G1 XR SCBA At-A-Glance
The MSA G1 XR is a next-generation SCBA platform built for the demands of modern structural firefighting. Engineered around modular electronics, configurable air supply options, and firefighter-first ergonomics, the G1 XR delivers reliability and adaptability in the most extreme operating conditions.

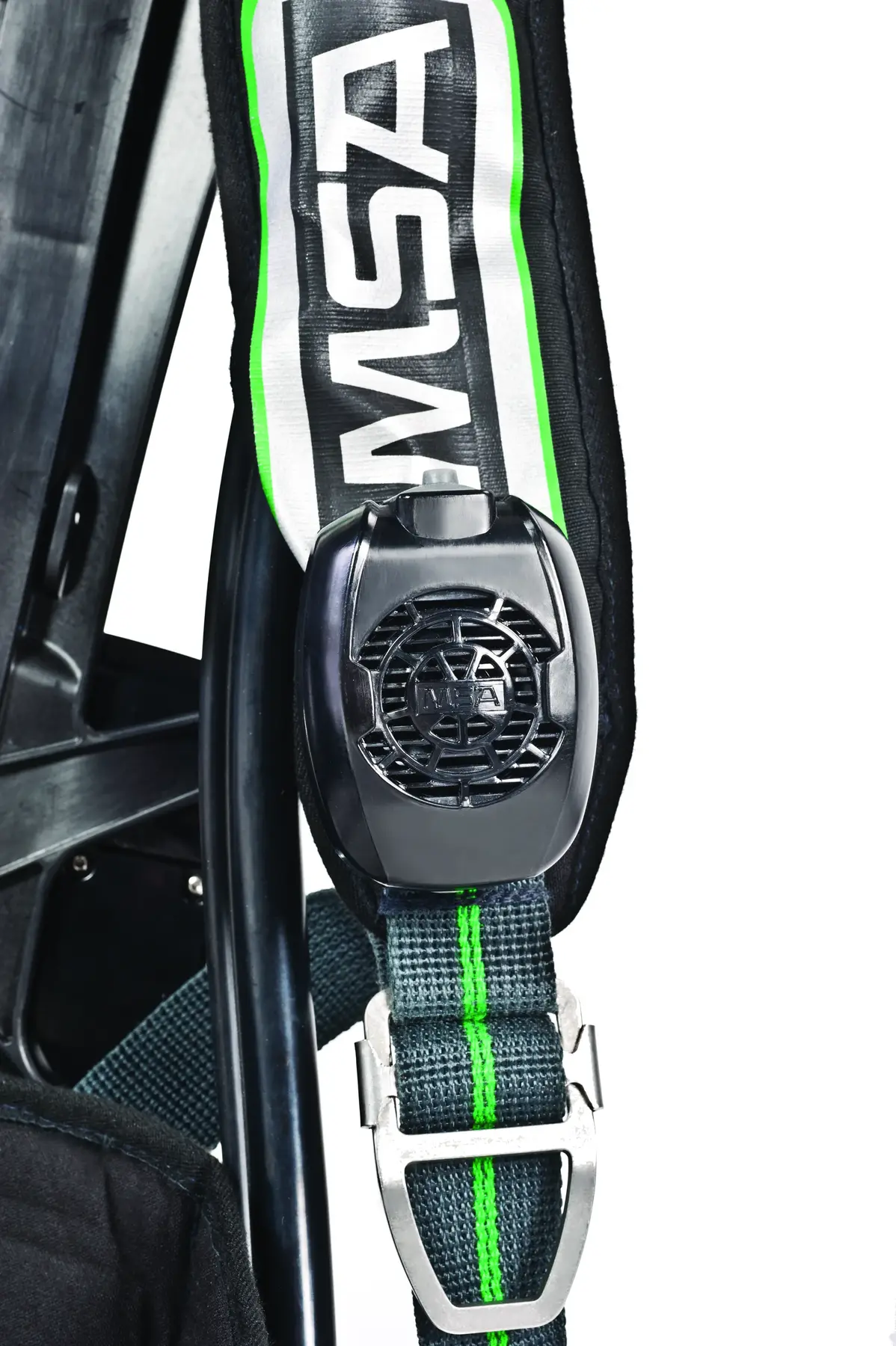

Designed to scale with your department, the G1 XR platform supports a wide range of configurations, including multiple pressure classes, cylinder options, and integrated technology packages, allowing for standardized deployments across entire fleets. Its fully integrated system architecture brings together critical components like the control module, heads-up display (HUD), voice amplification, and connection hardware into one cohesive, high-performance unit.
For departments focused on performance and long-term value, the G1 XR provides clear, measurable advantages. From optimized weight distribution and extended service time to advanced alarm systems and streamlined charging solutions, every element is built to support smarter purchasing decisions, efficient maintenance planning, and seamless station-level integration.
Request Demo
No Matter What Pack You Have, You Owe Yourself A Demo
Get a full view of the many features of the MSA G1 - built with firefighting teams in mind.
Quantitative details of MSA G1 XR SCBA
Regulatory approvals
NIOSH 42 CFR Part 84 (CBRN), NFPA 1970 (2025 structural)
Integrated TIC approvals
NFPA 1981/1982-2018, NIOSH CBRN
SCBA assembly weight
Not to exceed 24 lb
Facepiece weight (with comms, without regulator)
Not to exceed 1.4 lb
Facepiece effective / overlapping field of view
86% effective, 122% overlapping
Pressure reducer outlet pressure
Not to exceed 115 psi
Cylinder pressure families
2216 psi, 4500 psi, 5500 psi
Cylinder service-time families
30 min, 45 min (including low-profile), 60 min
HUD pressure bands
76-100%, 51-75%, 36-50%, 0-35%
Low-pressure trigger points
Approximately 35% remaining (UAC illumination and alarms)
PASS event-log capacity
Up to 36 hours
Time-to-empty algorithm initialization
Initial estimate after 3 minutes of consumption history
Backplate drag-handle static load
500 lb side handles, 1000 lb top handle
Rechargeable battery mass limit
No more than 1 lb
Rechargeable battery full-charge time
6 hours (flyer) / less than 7 hours (spec)
Rechargeable battery cycle expectation
Minimum 400 full charge/discharge cycles
Recharge battery charge-temperature range
32°F to 104°F
Request Demo
Get A Demo, See Why Departments Are Switching To MSA
More departments are switching to the MSA G1XR than any other SCBA.
Cylinder Configuration Specs
2216 psi | 30 min
- Air Volume: 45 ft³
- Height: 22.8 in
- Diameter: 6.7 in
- Full Weight: 11.3 lb
4500 psi | 30 min
- Air Volume: 45 ft³
- Height: 21.4 in
- Diameter: 5.4 in
- Full Weight: 10.4 lb
5500 psi | 30 min
- Air Volume: 45 ft³
- Height: 21.0 in
- Diameter: 5.0 in
- Full Weight: 9.9 lb
4500 psi | 45 min (low-profile)
- Air Volume: 65 ft³
- Height: 23.1 in
- Diameter: 6.3 in
- Full Weight: 13.9 lb
4500 psi | 45 min
- Air Volume: 65 ft³
- Height: 21.0 in
- Diameter: 6.8 in
- Full Weight: 14.4 lb
5500 psi | 45 min
- Air Volume: 65 ft³
- Height: 22.7 in
- Diameter: 5.8 in
- Full Weight: 13.5 lb
4500 psi | 60 min
- Air Volume: 87 ft³
- Height: 23.9 in
- Diameter: 7.1 in
- Full Weight: 17.2 lb
5500 psi | 60 min
- Air Volume: 87 ft³
- Height: 22.7 in
- Diameter: 6.7 in
- Full Weight: 17.4 lb
4500 psi Eclipse | 30 min
- Air Volume: 45 ft³
- Height: 21.7 in
- Diameter: 5.4 in
- Full Weight: 10.2 lb
4500 psi Eclipse | 45 min (low-profile)
- Air Volume: 65 ft³
- Height: 23.5 in
- Diameter: 6.1 in
- Full Weight: 13.5 lb
Feature Highlights With Quantitative Data

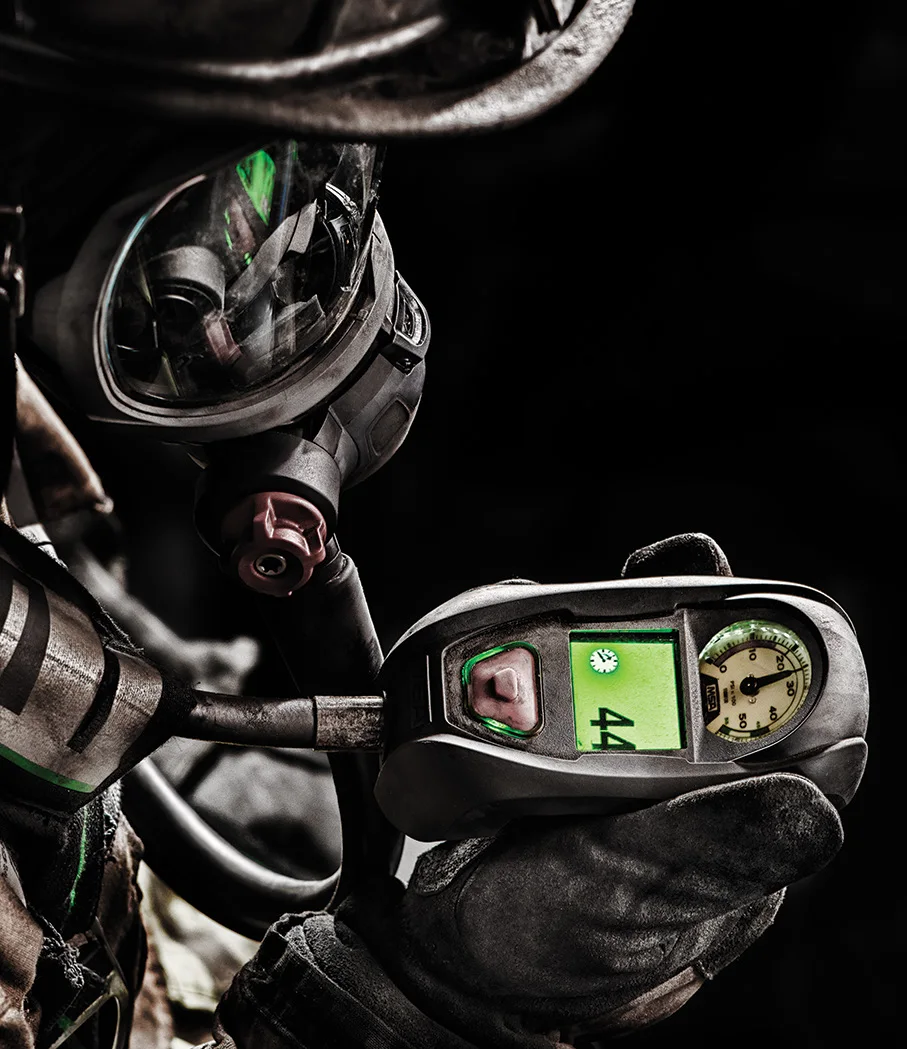

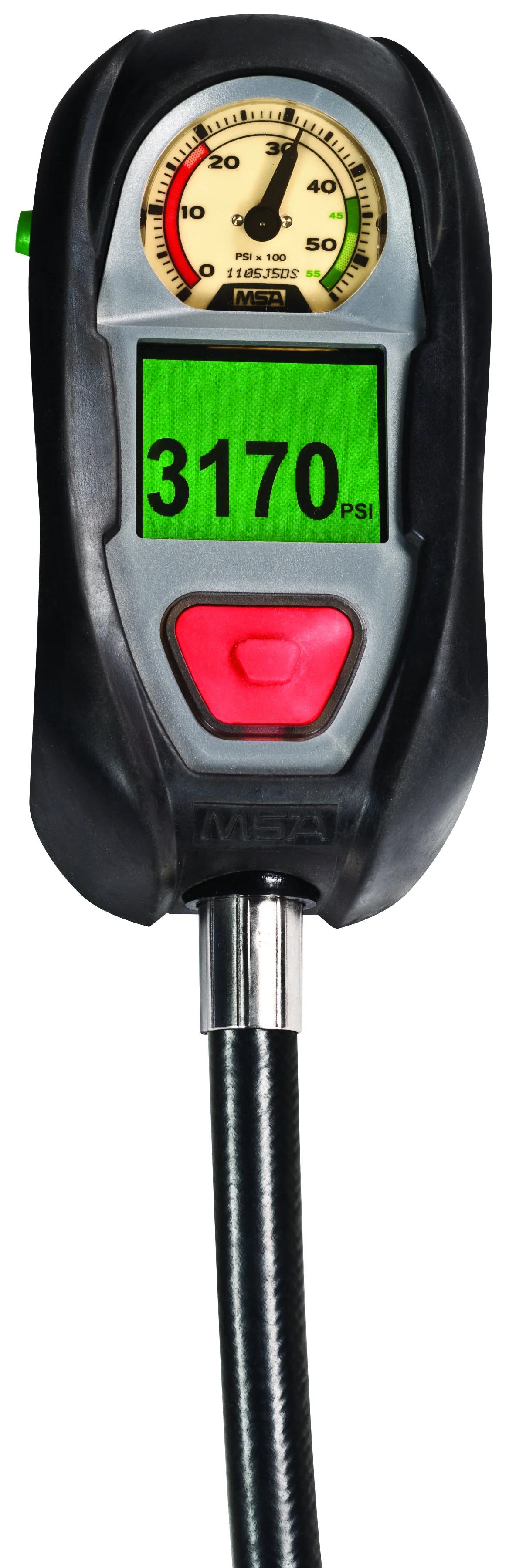

Dual Display Control Module
- Color LCD + analog gauge display architecture
- TIC upgrade adds 1.25 in length and 4.2 oz weight
- TIC control module dimensions: 6.5 x 3.0 x 1.5 in

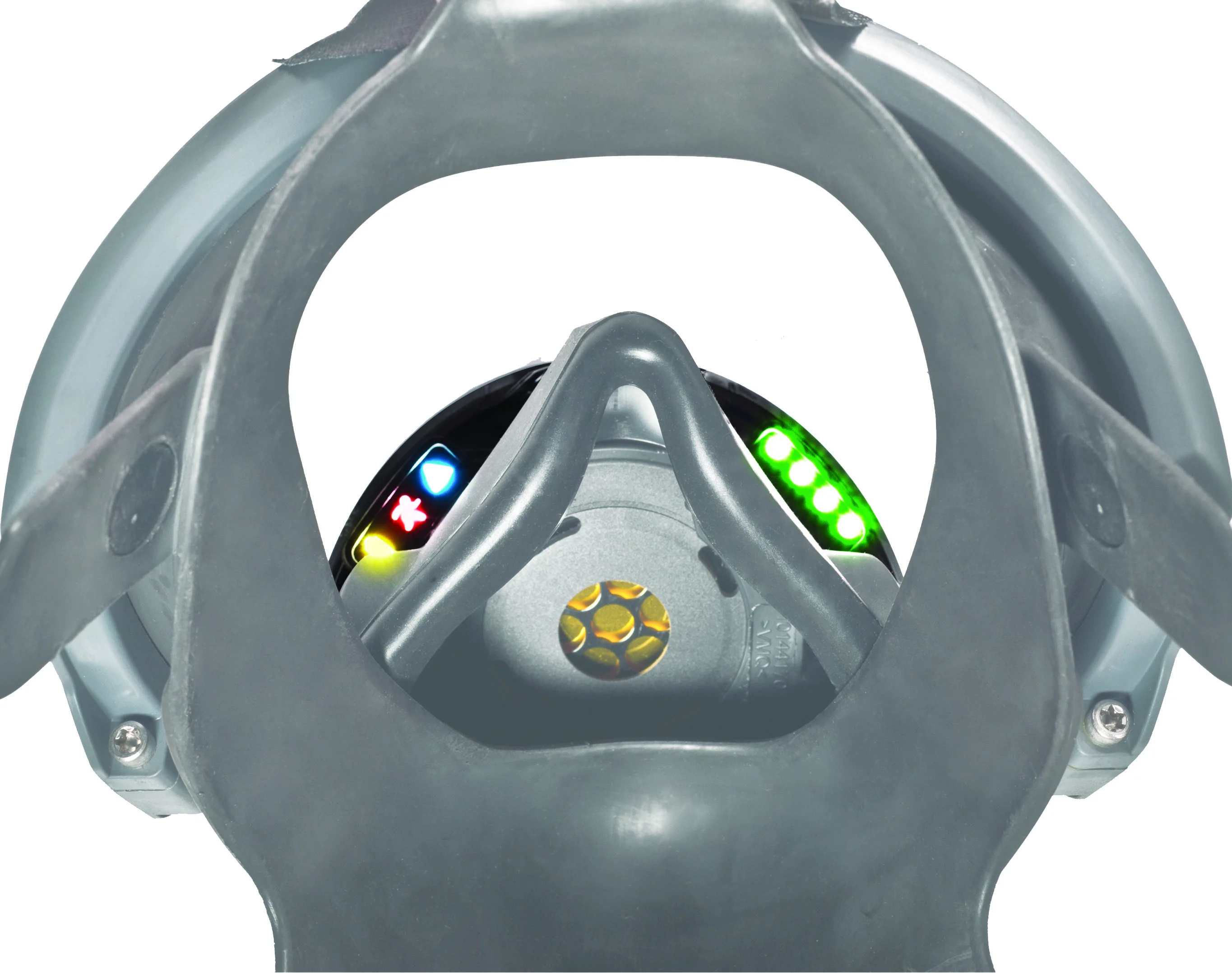

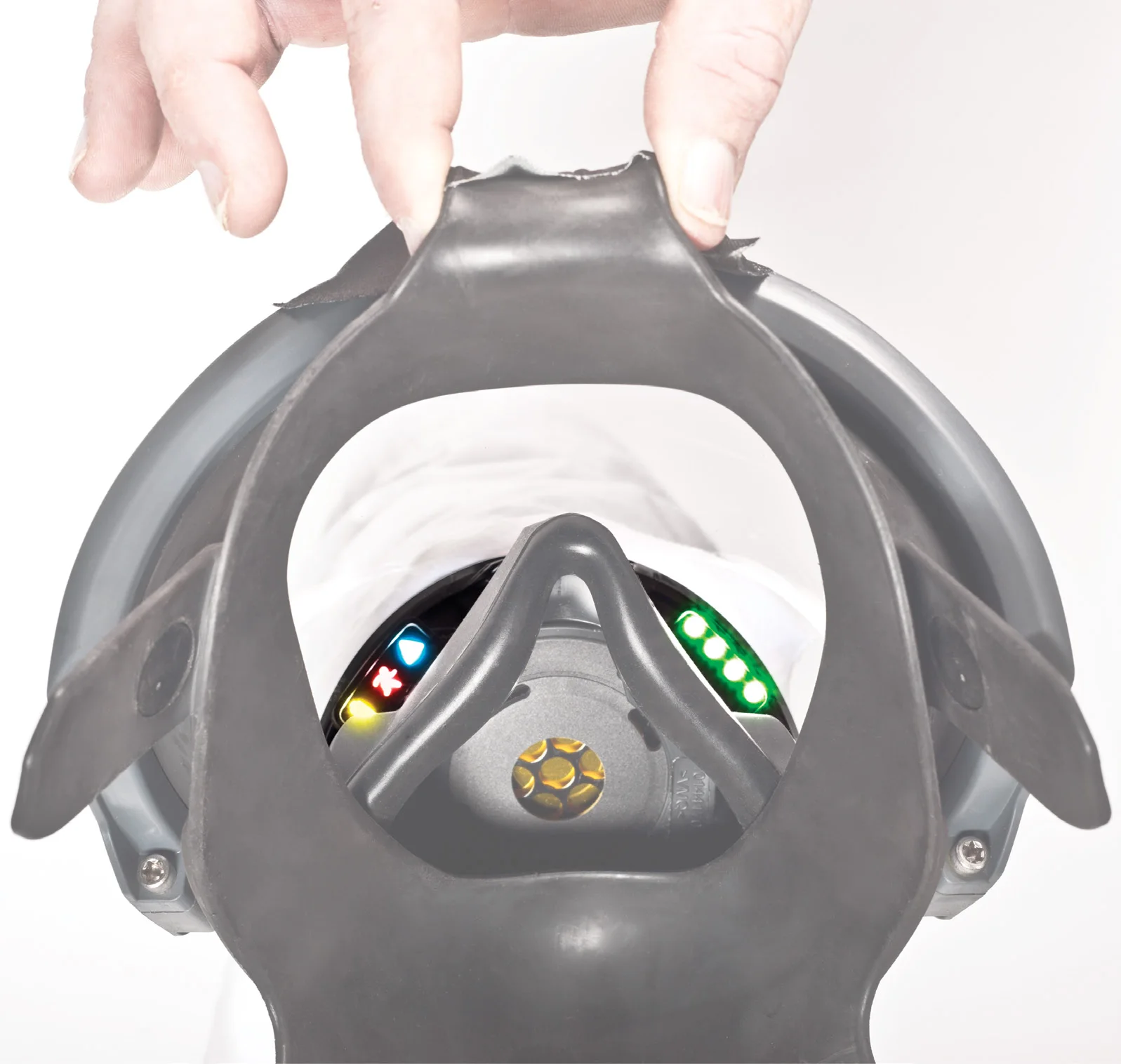

HUD Pressure Readout
- 4 pressure bands: 76-100%, 51-75%, 36-50%, 0-35%
- Low-pressure signaling starts around 35% remaining
- Designed for RFI immunity per product specification
Buddy Light Visibility
- 4 buddy lights + 2 control-module lights + 1 regulator light
- Facepiece field of view: 86% effective / 122% overlapping
- Color states map to pressure ranges and alarm status

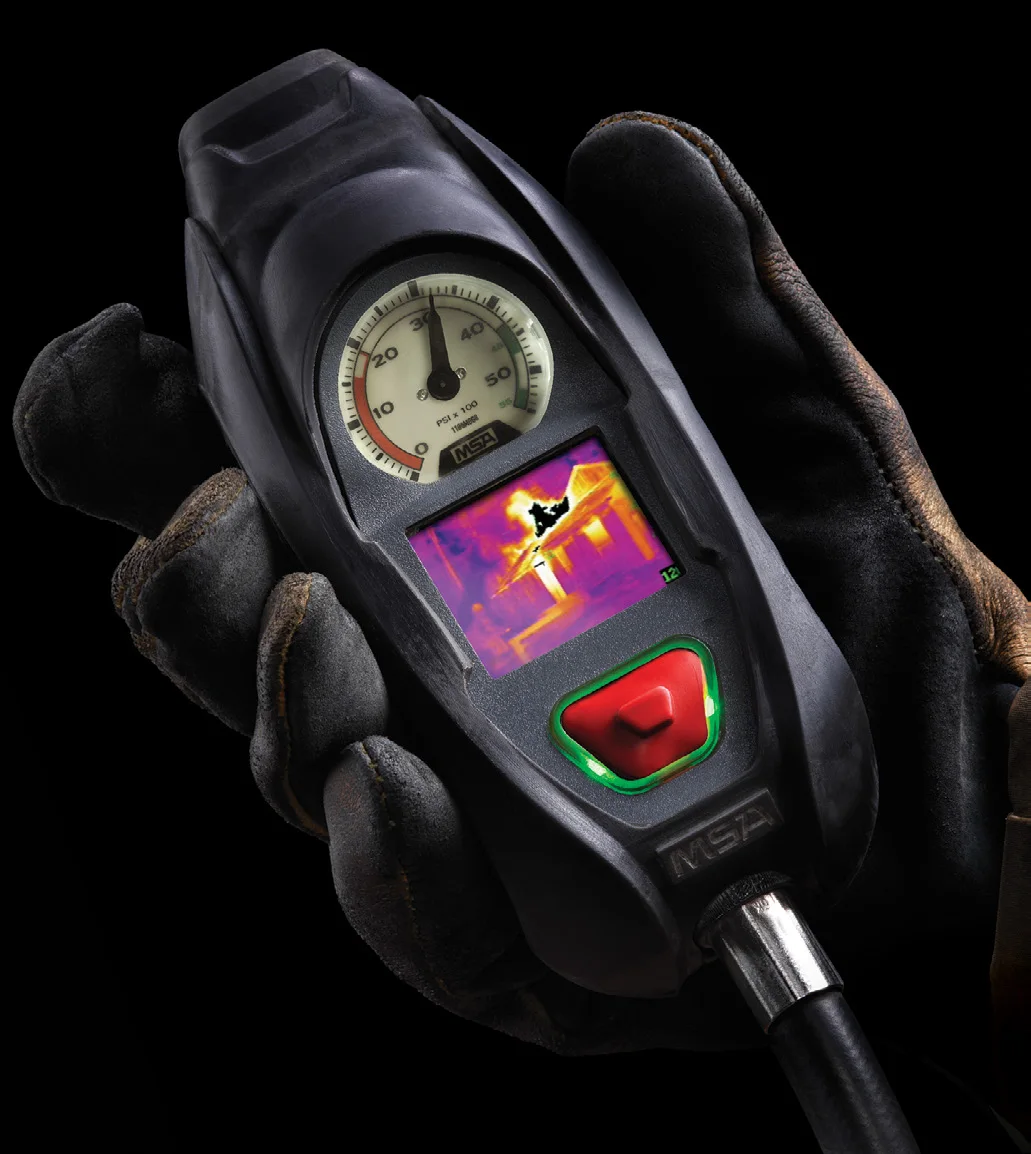

Integrated TIC
- Resolution: 220 x 176; refresh rate: 30 Hz
- Field of view: 35°H x 25°V; detection distance: 490 ft
- Temperature accuracy: +/-18°F from 0-220°F; +/-10% from 220-932°F

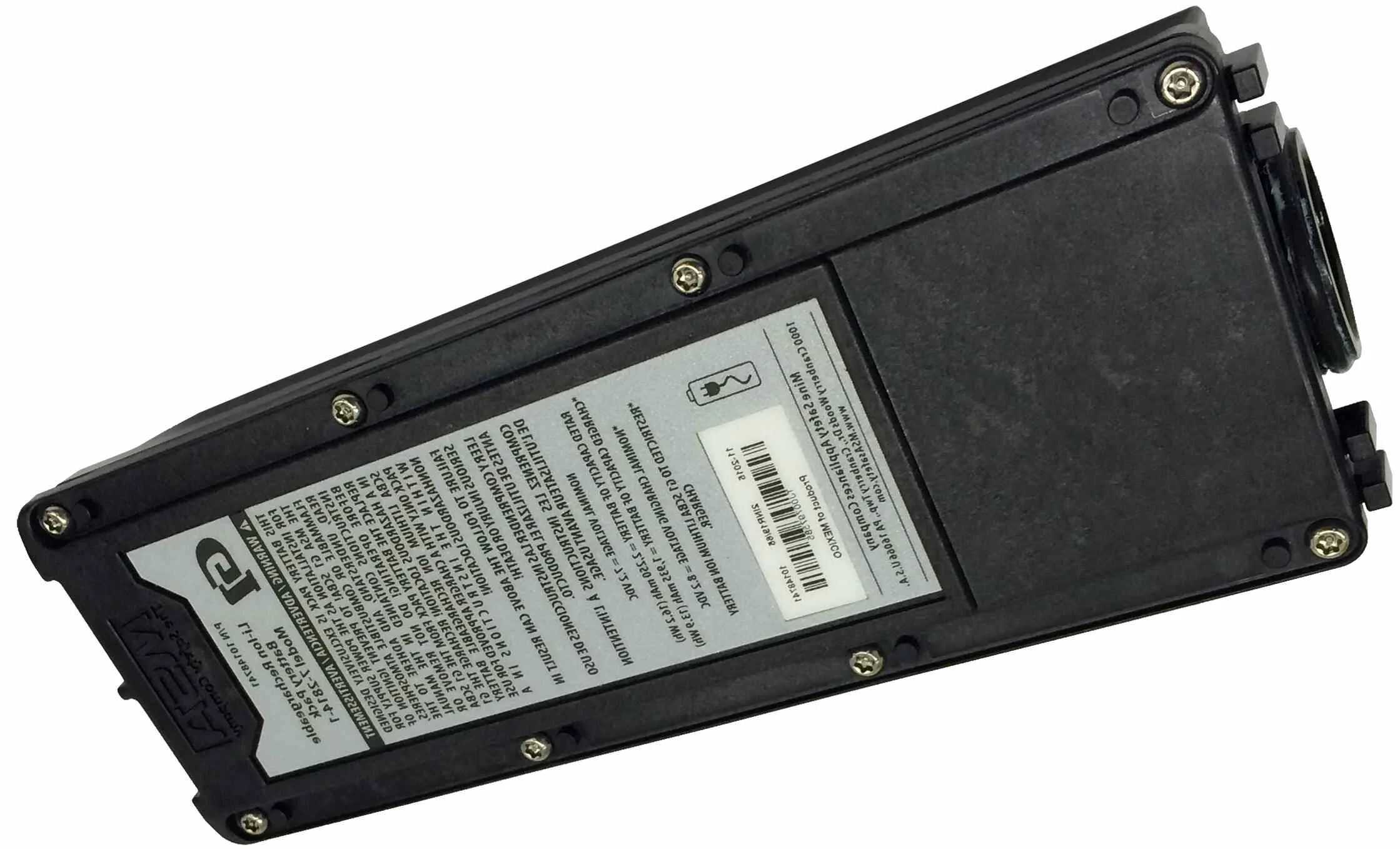

Rechargeable Power Module
- Approximately 1/2 lb lighter than alkaline packs
- Full charge in 6 hours (flyer), less than 7 hours (spec)
- Rechargeable battery supports a minimum 400 full cycles

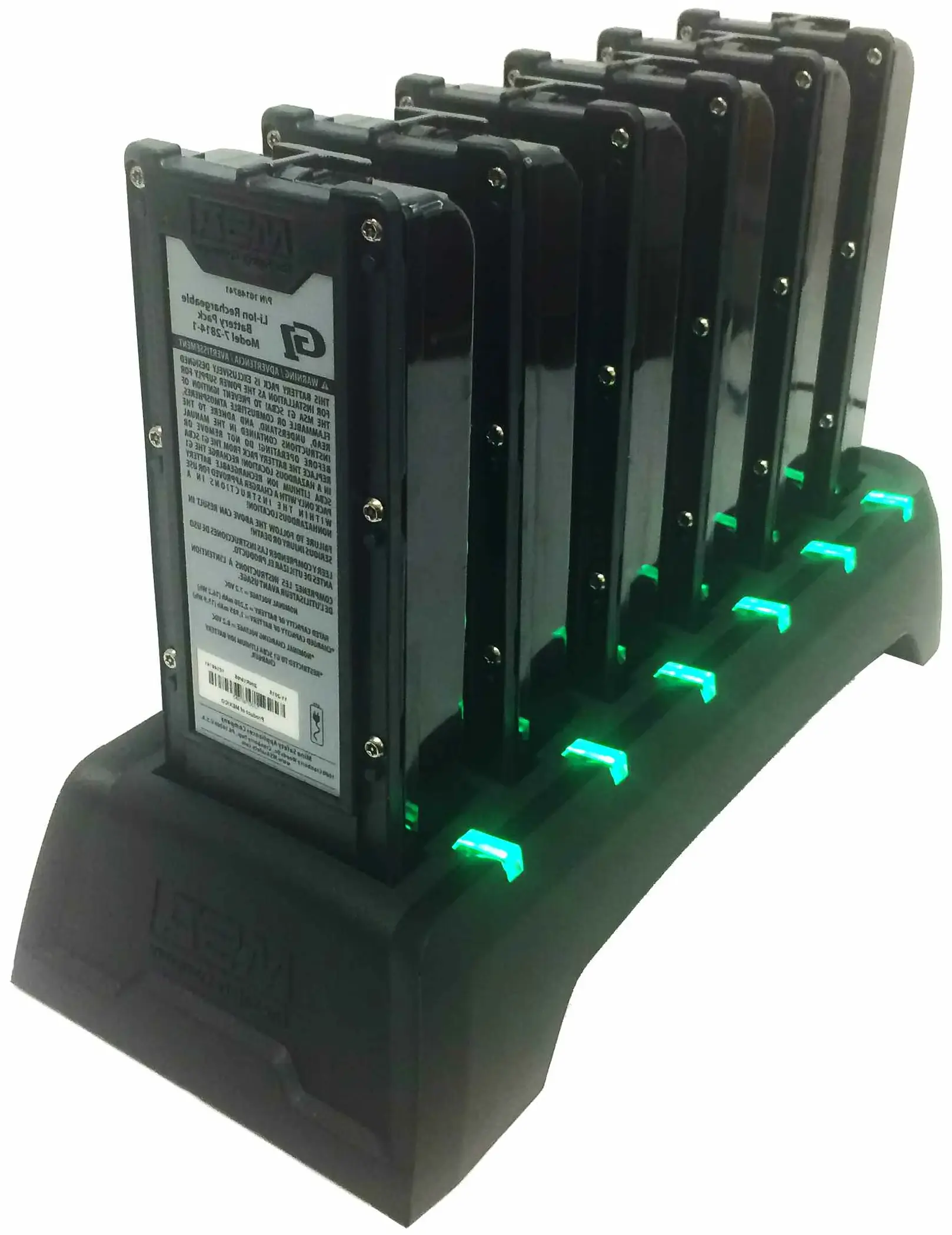

Smart Charging Station
- Charges up to six batteries simultaneously
- Recharge window specified between 32°F and 104°F
- Smart-charge behavior includes rapid charge, analysis, and trickle mode
MSA G1 XR SCBA Literature

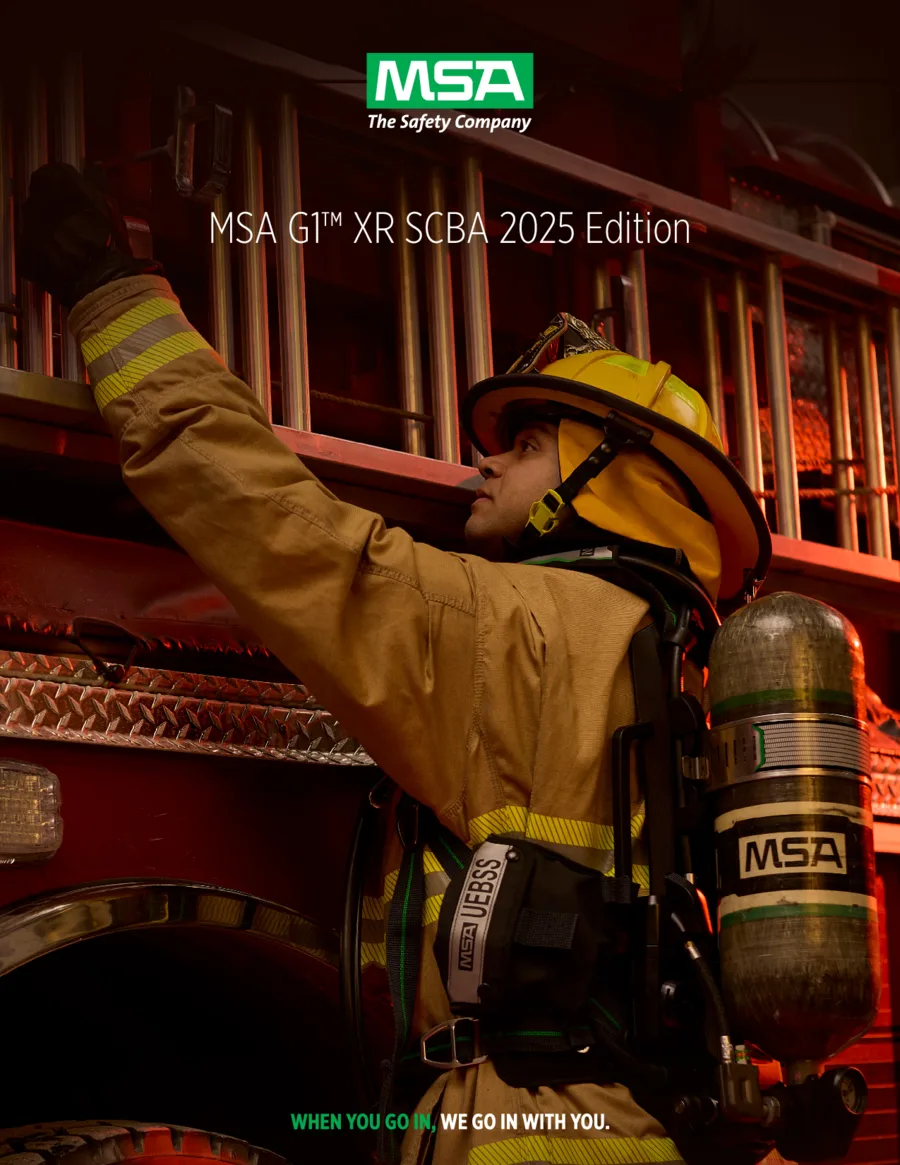

0105-169-MC_MSA_G1-SCBA.pdf
0105-285-MC_G1-Extreme-SCBA_Product-Specifications.pdf

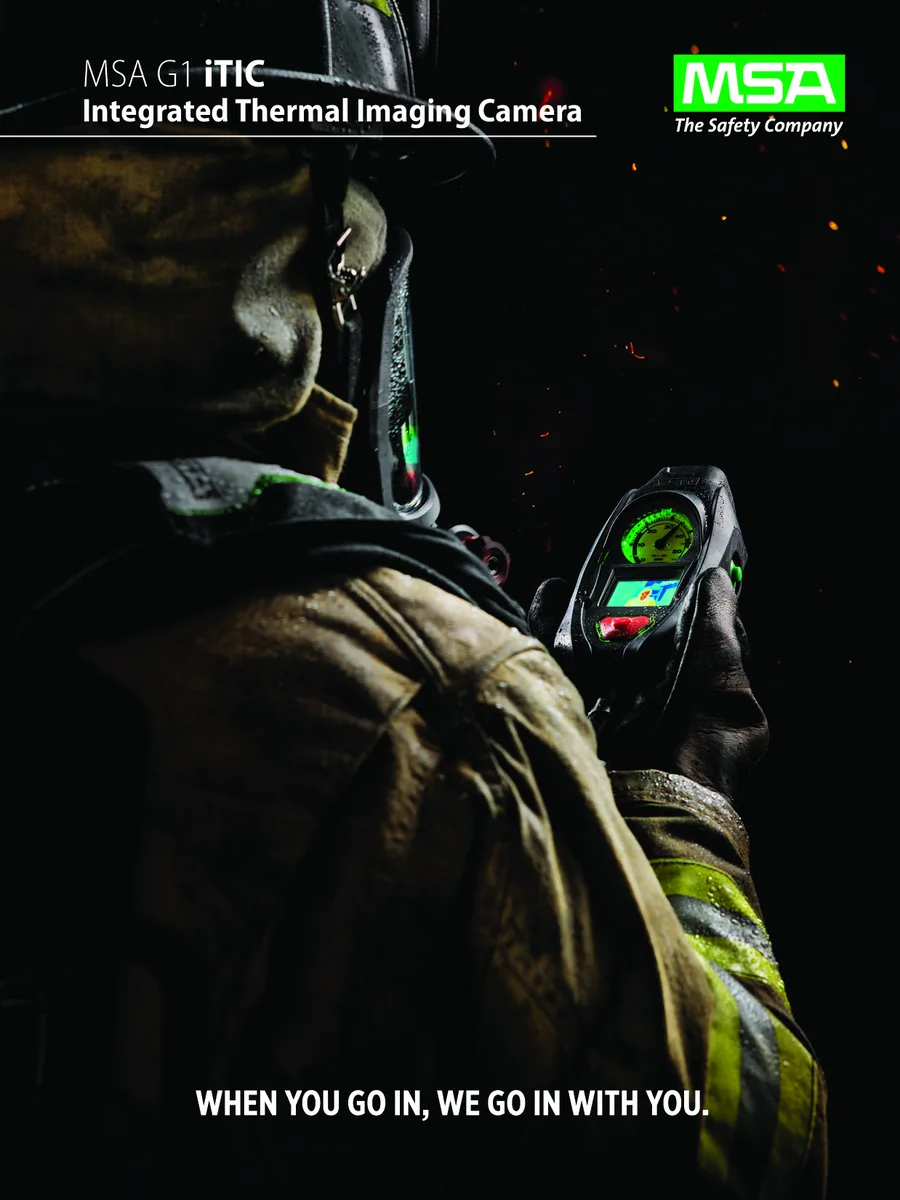

0119-33-MC_G1-Integrated-TIC-Bulletin.pdf

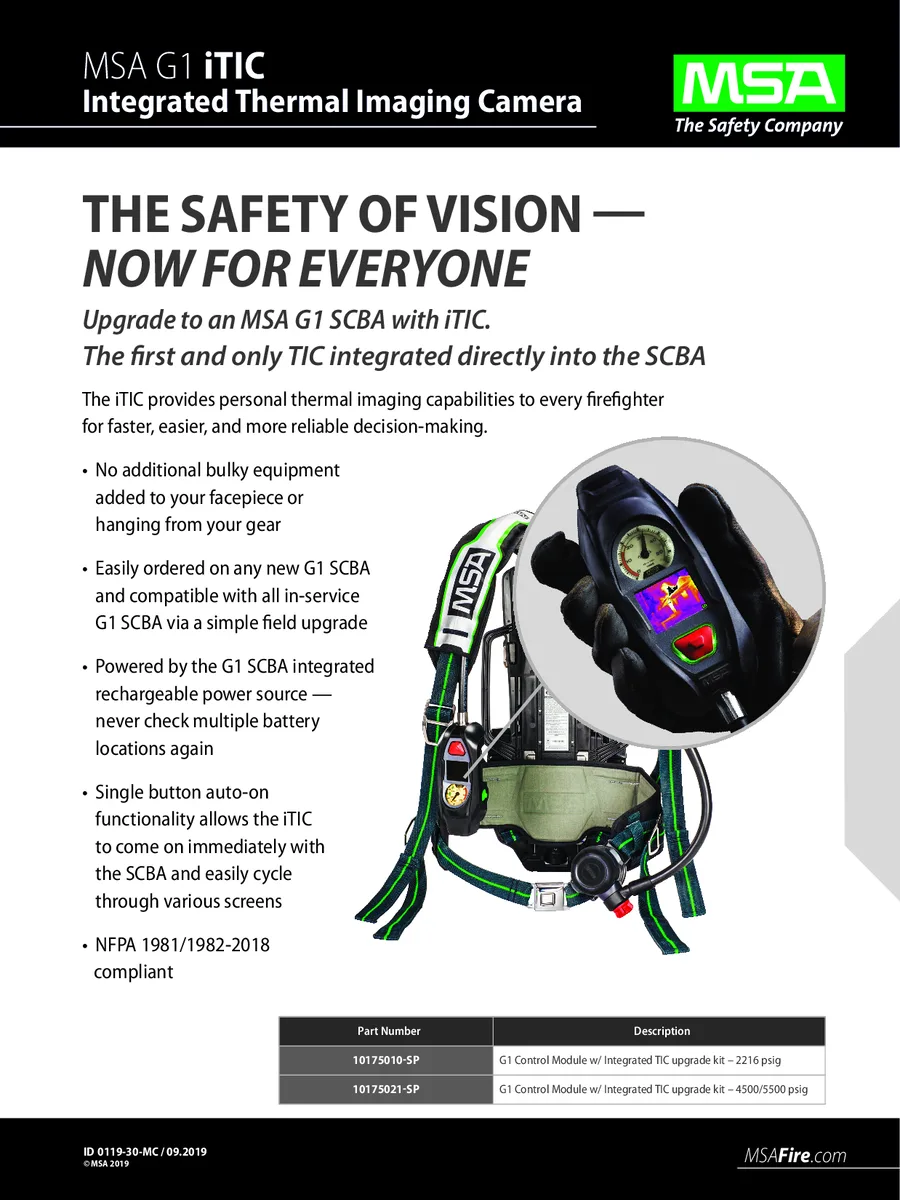

0119-30-MC_G1_IntegratedTIC_SellSheet.pdf
0105-210-MC MSA G1 Rechargeable Battery Introductory Flyer.pdf

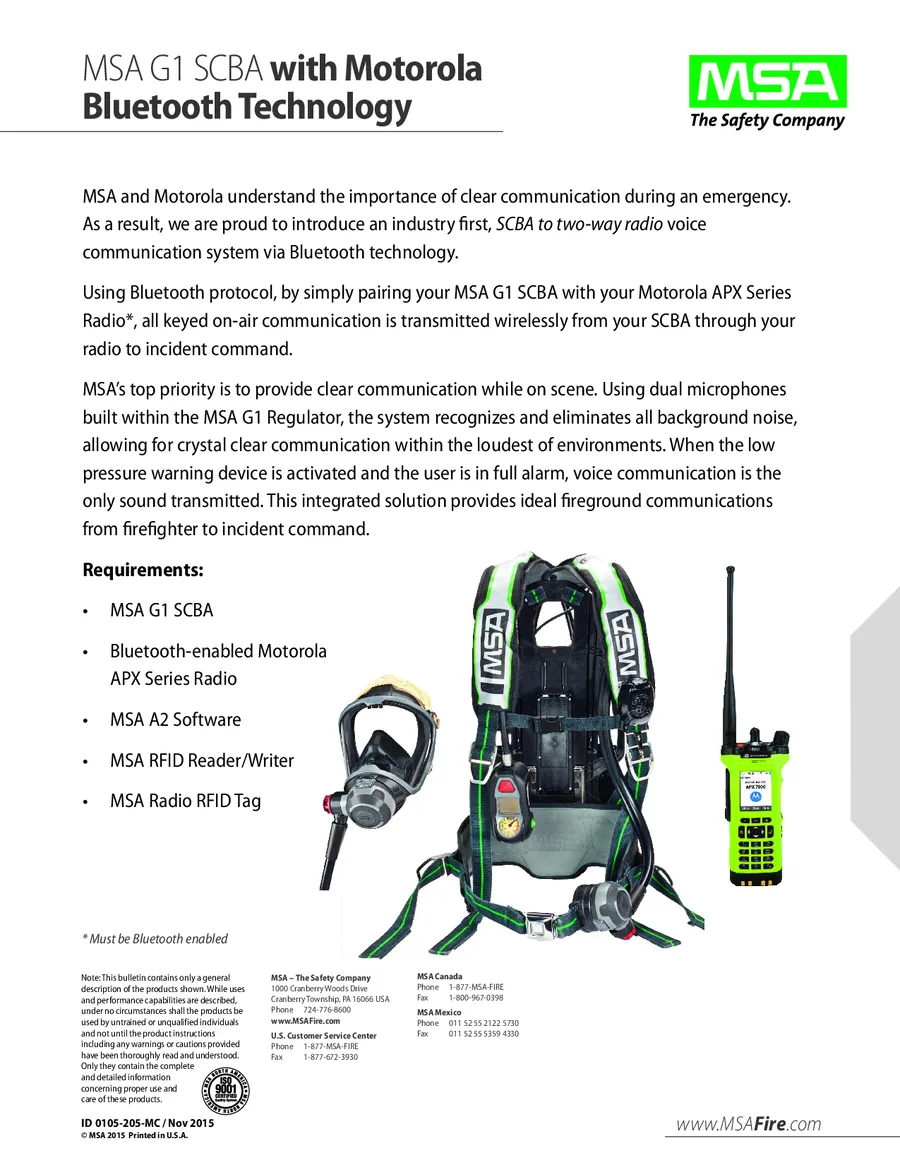

0105-205-MC_G1_MotorolaBluetoothTech.pdf

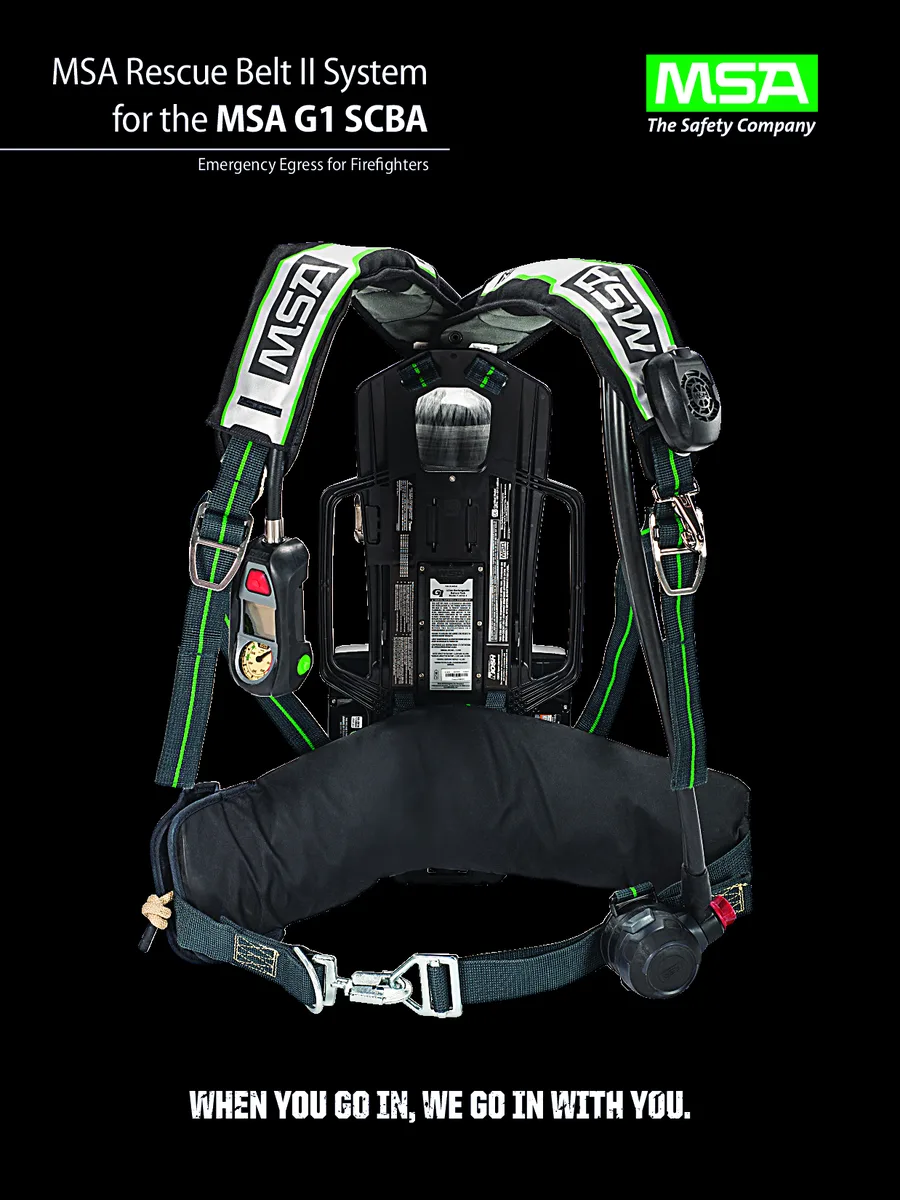

0107-25-MC_MSA RescueBelt II.pdf
