Equipment / Breathing Air
Firematic supplies Arctic compressor systems for departments that need reliable breathing-air support at the station, on the training ground, or in a mobile filling program. This page gives you the family view first, then routes you into the right dedicated product page.
Arctic's line covers enclosed station compressors, an open-frame platform, and a Pressure+ 7K boost system. Start here, then move into the family page that matches your room, fill volume, and pressure plan.
This is the quickest way to frame the lineup before drilling into a specific family page.
| Product | Pressure | Max Flow | Motor | Drive Speed | Weight |
|---|---|---|---|---|---|

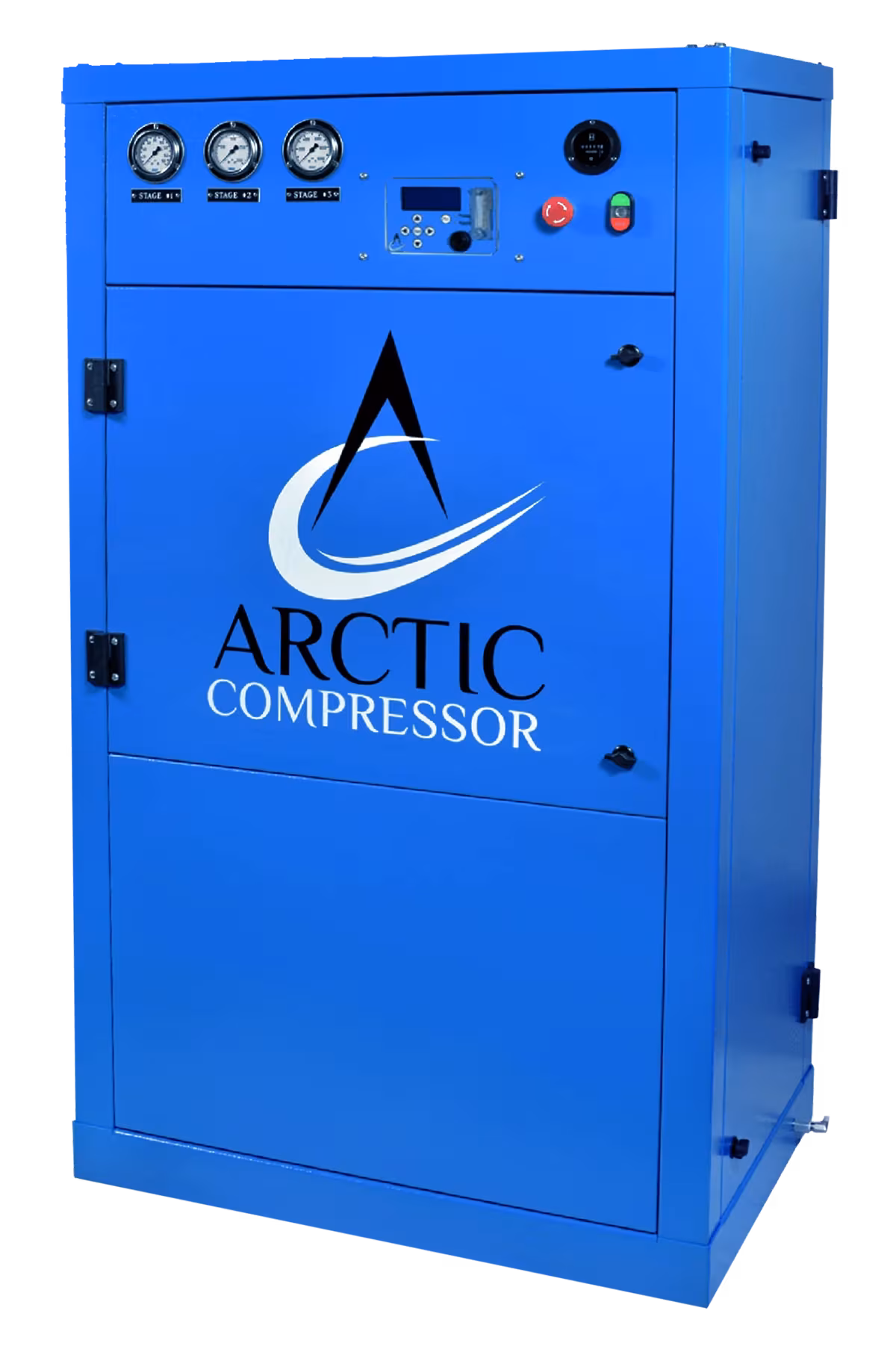

| 1000 Series |
5000 to 6000 PSI | Up to 9 CFM | 7.5 HP | 1500 RPM | 610 lb |

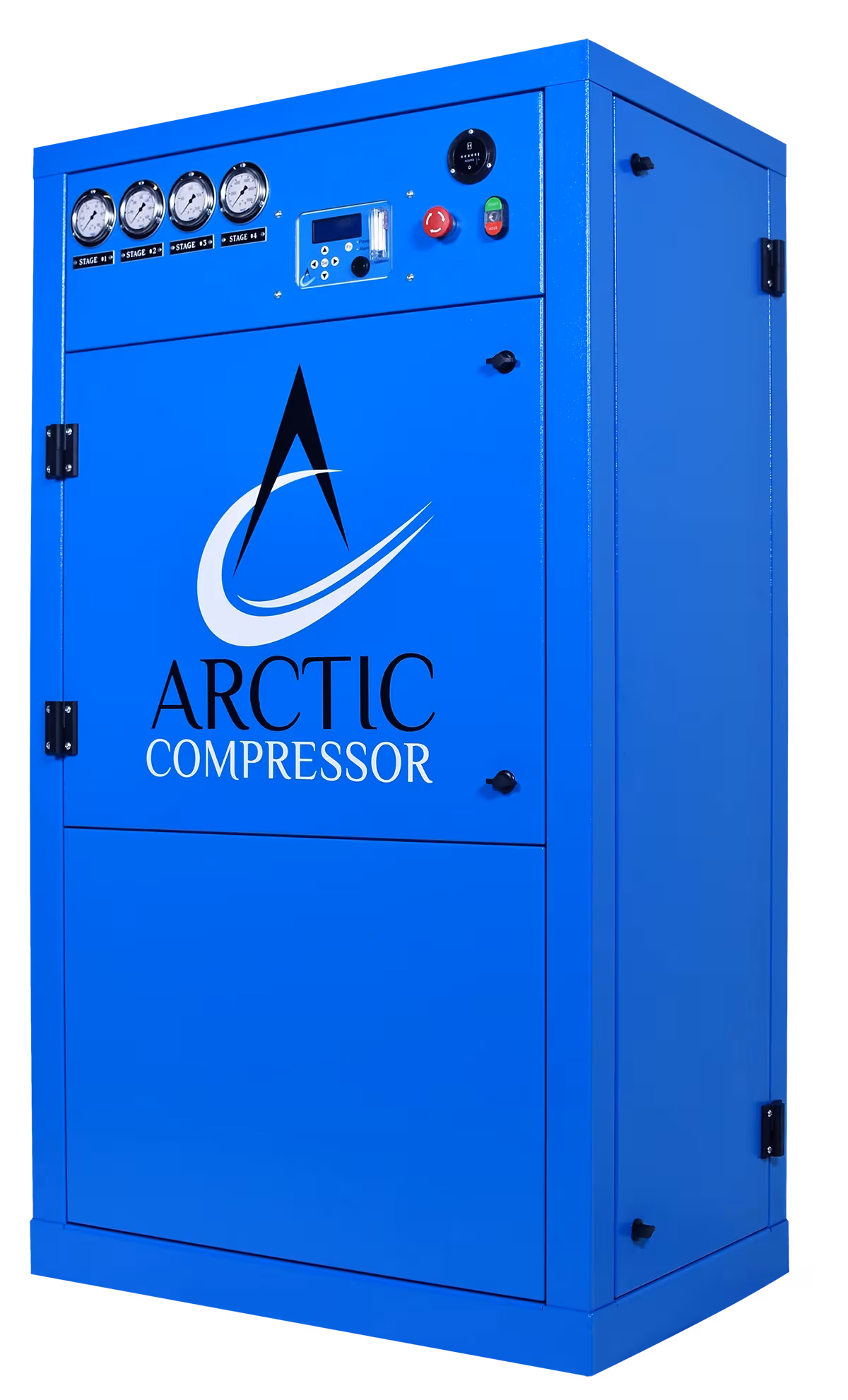

| 1500 Series |
6000 PSI | Up to 14 CFM | 7.5 to 10 HP | 1100 to 1400 RPM | 680 to 700 lb |

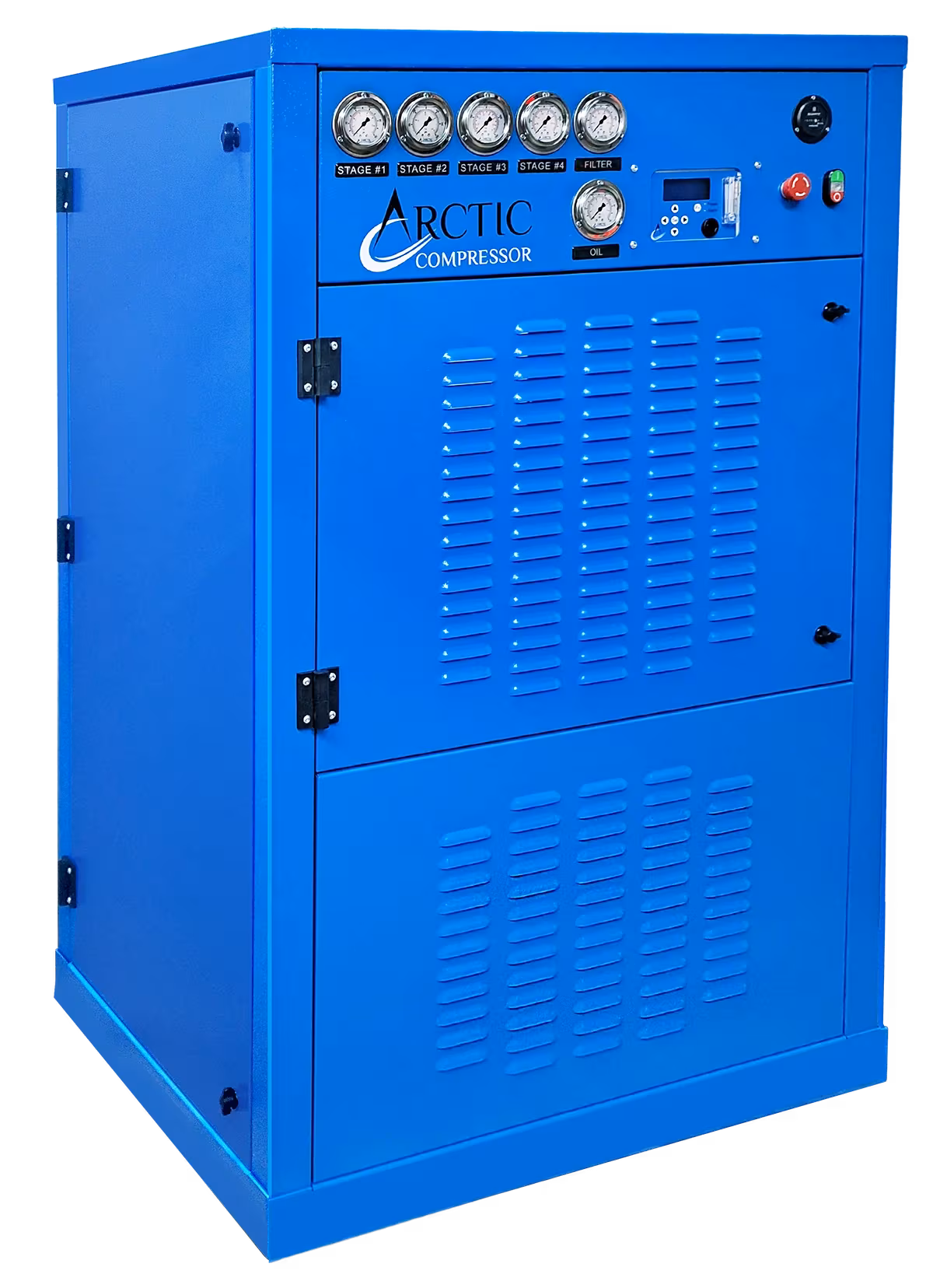

| 2500 Series |
6000 PSI | Up to 24 CFM | 15 to 20 HP | 1400 RPM | 1150 to 1200 lb |
| Open Frame |
5000 to 6000 PSI | Up to 9 CFM | 7.5 to 10 HP | 1500 RPM | 320 to 410 lb |

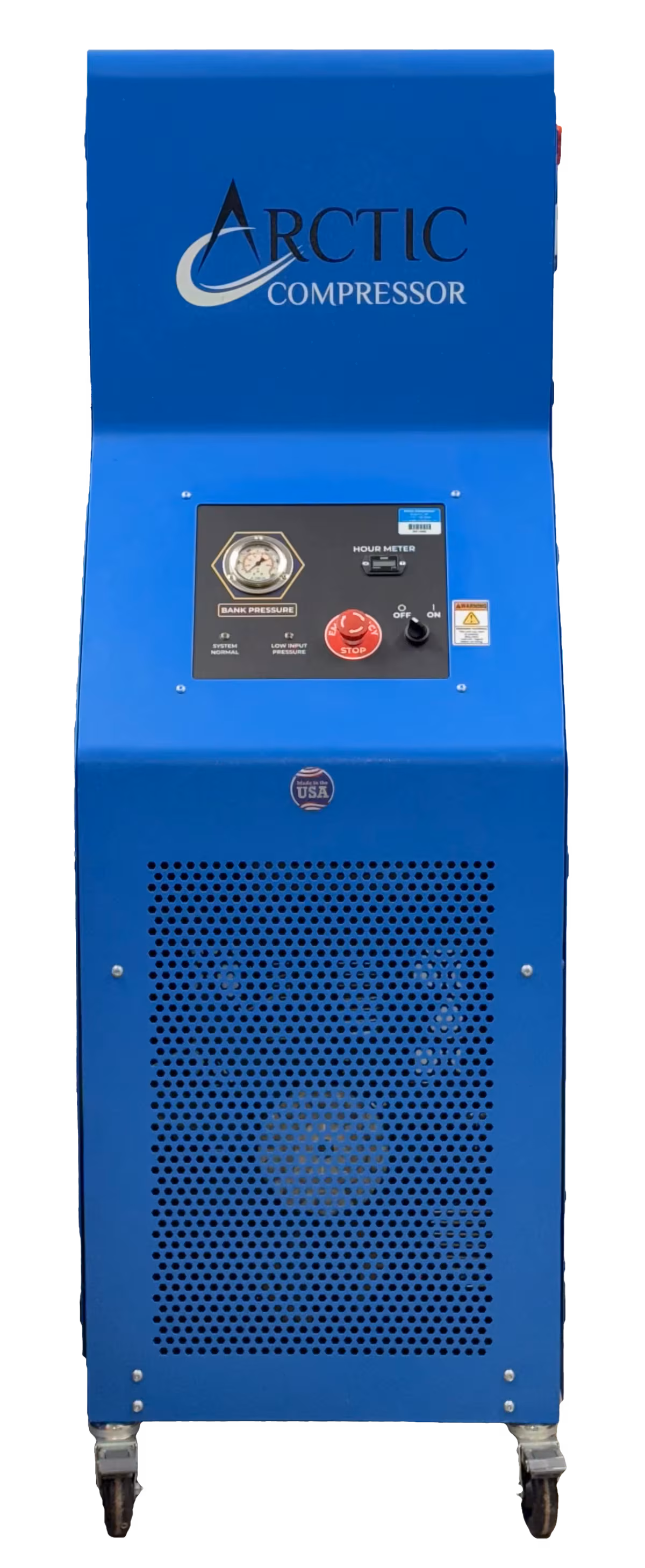

| Pressure+ 7K |
Up to 7000 PSI | Boost system | 15 amp, 208/240V | Automatic operation | 800 lb |
|
Up to 7000 PSI | 24 CFM | 20 HP | 5-stage compression | 5200 to 6000 lb |
If the compressor services more than one company, supports cascade storage, or fills after every training evolution, CFM becomes the real decision point.
Enclosed units are easier to place cleanly in finished rooms. Open-frame systems win when access, heat rejection, or service clearance is the bigger concern.
Every platform here is positioned to exceed CGA Grade E breathing air standards, but filter life and maintenance still need to match the actual fill schedule.
If the department expects 7000 PSI cylinder programs or wants more fills per hour from its air room, Pressure+ should be discussed early instead of after install.
