Equipment / Arctic Compressor

Superior 7K All-In-One

A complete SCBA breathing-air station with a 24 CFM compressor, four fill positions standard, and 7000 PSI air storage in one integrated American-made package.

24 CFM Up to 7000 PSI 4 Fill Positions

All-in-one SCBA filling system

Built to remove the air-room bottleneck

The Superior 7K combines compressor, fill stations, controls, safety cabinet, CO monitoring, hose reel, and storage into one breathing-air station. Its 5-stage design supports cooler high-pressure operation while the standard four fill positions help crews move more cylinders through the room without stacking up around one fill point.

It is designed for real firehouse constraints: modular movement through a standard 36 inch fire door, a wall-hugging 34 inch depth, glove-friendly manual controls, and service access through lift-up panels and quick-access doors.

Arctic Superior 7K with integrated compressor, fill stations, and storage

All-in-one workhorse

Complete breathing-air station with four fill positions standard and 5-stage compression for sustained station use.

Built for existing rooms

Modular architecture fits through a standard 36 inch fire doorway and keeps depth to 34 inches with doors closed.

Manual controls

Mechanical buttons, dials, knobs, and valves keep operation simple when gloves, water, or touchscreen failures would slow crews down.

Safety cabinet

Blast-proof design, CO monitoring, lock-before-fill operation, emergency stop, and automatic shutdown protections are built into the package.

Build Your Superior 7K

Configuration starts with power and storage

1. Power Type

Single-phase or three-phase

Choose the electrical configuration around the building and utility plan.

2. Air Storage

Standard: 1 ASME, 4 UN/ISO

Storage can be configured up to 5 ASME cylinders depending on the fill program.

3. Quote Review

Match the package to your station

Firematic can help confirm room fit, fill demand, pressure strategy, and delivery timing before ordering.

Cylinder filling

Cylinder filling should be easy

The integrated Arctic Control Panel gives operators the core information and adjustments they need without forcing every fill through a fragile touchscreen workflow.

Cylinder pressure selection
Fill rate control
Storage pressure indicator
Cylinder pressure indicator

Smart monitoring

Smart Monitoring Without the "Screen Fatigue"

Superior 7K gives operators the data they need without the digital clutter. The interface communicates real-time fill pressure, cylinder status, and system warnings while keeping critical actions on mechanical controls.

  • No ghost-touches: Mechanical buttons and dials keep gloves-on operation straightforward.
  • Mission-critical reliability: If a touchscreen fails, the station can be out of service. Simpler controls keep airflow under operator control.
  • Reduced life-cycle cost: Avoid expensive proprietary HMI replacement paths and long downtime windows.

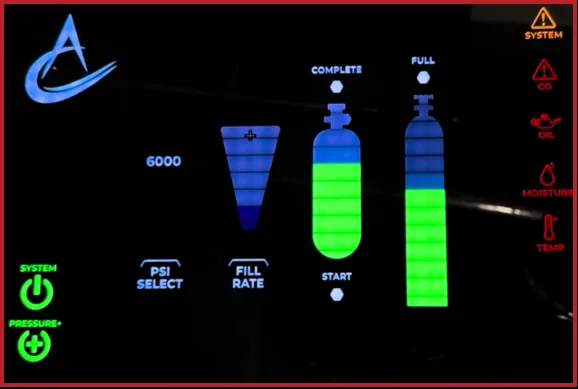

Arctic Superior 7K control panel monitoring sequence

Control panel sequence cycles every 1.5 seconds

Simple to move, easy to fit

Designed around existing fire stations

Many all-in-one systems need double doors, forklifts, or facility changes. Superior 7K is built to move in two modular pieces through a standard 36 inch fire doorway, then sit close to the wall so the air room stays usable.

  • Standard fire door guarantee: Modular design supports movement through a standard 36 inch fire doorway.
  • Installation in more places: Compact architecture can reduce the need for building modifications.
  • Wall-hugging footprint: 34 inch closed depth preserves working space around the unit.
CFM24
PSIUp to 7000 PSI
Stages5-stage compression
Motor20 HP
Air Storage1 ASME cylinder, 4 UN/ISO cylinders; configurable up to 5 ASME cylinders
Fill StationsTwo double-position compact fill stations, 4 cylinder positions total
OperationAutomatic operation system, no cascading required
Hose Reel100 ft high-pressure hose reel with electric rewind
Weight5200 to 6000 lb max, depending on configuration

Safety, Air Quality, and Maintenance

  • Exceeds CGA Grade E breathing air quality.
  • Emergency stop button, Arctic CO Monitor, and Arctic Control Panel.
  • Diagnostic gauges and monitoring are accessible inside the unit.
  • Compressor low-pressure and high-temperature safety shutdown.
  • Automatic condensate and oil separation.
  • Easy-access lift-up panels for maintenance.

Dimensions and Compatibility

Doors Closed102 in W x 34 in D x 76 in H
Doors and Fill Station Open148 in W x 59 in D x 81 in H
Preset Fill Pressures6000, 5500, 4500, 3000, and 2216 PSI
Cylinder CompatibilityCommon SCBA and SCUBA cylinders up to 31 in length
Availability8 to 12 weeks
