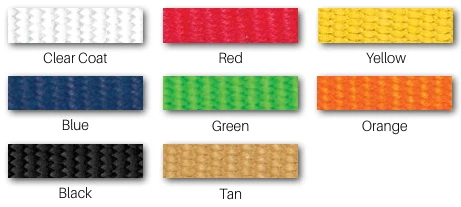

Color Swatch Options

About Key-Lite

Ultra-light double-jacket polyester built for abrasion resistance with optional Key-Lok protection and a polyurethane liner.

Technical details of Key-Lite

Scope

Ultra light, double jacket construction, utilizing high strength ring spun and filament polyester fibers to deliver a highly abrasion resistant lightweight.

Jacket Construction

The outer jacket is mildew resistant and available with iconic “Key-Lok” polyurethane based polymer impregnation for additional abrasion and moisture resistance.

Abrasion

Hose assemblies shall be available with the special “Key-Lok” polyurethane based polymer impregnation for added abrasion resistance and ease in identification purposes. NFPA color options may be specified by the end user.

Lining

A dependable, polyurethane lining eliminates ozone deterioration while maintaining lightweight integrity of the hose.

Couplings

or forged Storz. Special threads or other custom features available 1961, on all Key-Lite diameters up to 3" shall be 1200 psi / 82 bar. Scope with current minimum requirements of NFPA 1962.

Performance and Standards

Lining KEY-LITE The lining shall be a single-ply extruded tube of synthetic polyurethane to resist ozone. Meets or exceeds NFPA 1961. UL listing applies by diameter and pressure rating.

Diameter specifications of Key-Lite

Diameter	Part No.	Service Test	Proof Test	Bowl Size	Weight Uncoupled
1"	DP10-800-PU	400 psi	800 psi	13/8"	0.14lbs/ft
11/2"	DP15-800-PU	400 psi	800 psi	115/16"	0.28 lbs/ft
13/4"	DP17-800-PU	400 psi	800 psi	2 1/8"	0.30 lbs/ft
21/2"	DP25-800-PU	400 psi	800 psi	3"	0.46 lbs/ft
3"	DP30-800-PU	400 psi	800 psi	3 1/2"	0.62 lbs/ft
