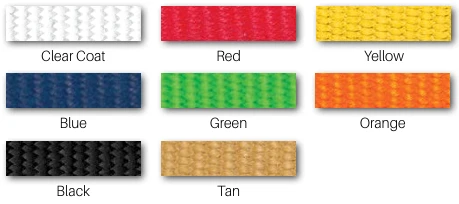

Color Swatch Options

About Eco-10

Lightweight double-jacket hose built with premium polyester fibers over a thin-wall EPDM rubber liner for dependable industrial service.

Technical details of Eco-10

Scope

Lightweight, double jacket construction, combining 100% premium ring spun staple and filament polyester fibers over a thin wall, high tensile, EPDM rubber liner.

Jacket Construction

The outer jacket is mildew and moisture resistant, available with “Key-Lok” polyurethane based polymer impregnation which shall meet the requirements of MIL-H-24606 latest edition for abrasion resistance.

Abrasion

Hose assemblies shall be available with the special “Key-Lok” polyurethane based polymer impregnation for added abrasion resistance and ease in identification purposes. NFPA color options may be specified by the end user.

Lining

Lining ECO-10 The rubber lining shall be a single-ply extruded tube of synthetic high tensile EPDM compounded to resist ozone.

Couplings

Connection options are available to match apparatus and deployment preferences.

Performance and Standards

The minimum burst test pressure, when tested in accordance to NFPA 1961, on all Eco-10 diameters up to 3" shall be 1200 psi / 82 bar. Minimum burst test requirements for 4" and 5" diameters shall be 900 Meets or exceeds NFPA 1961. UL listing applies by diameter and pressure rating.

Diameter specifications of Eco-10

Diameter	Part No.	Service Test	Proof Test	Burst Test	Bowl Size	Weight Uncoupled
1"	DP10-800	400 psi	800 psi	1200 psi	13/8"	0.14 lbs/ft
11/2"	DP15-800-ECO	400 psi	800 psi	1200 psi	115/16"	0.23 lbs/ft
13/4"	DP17-800-ECO	400 psi	800 psi	1200 psi	21/16"	0.28 lbs/ft
2"	DP20-800	400 psi	800 psi	1200 psi	22/5"	0.31 lbs/ft
21/2"	DP25-800-ECO	400 psi	800 psi	1200 psi	3"	0.42 lbs/ft
3"	DP30-800-ECO	400 psi	800 psi	1200 psi	33/8"	0.56 lbs/ft
4"	DP40-600	300 psi	600 psi	900 psi	41/2"	0.82 lbs/ft
5"	DP50-600	300 psi	600 psi	900 psi	51/2"	1.14 lbs/ft
