Super Vac Electric PPV Fans

The best electric fans hold up to the fire ground. Meet the Super Vac Electric PPV Fans electric PPV fan lineup, the ultimate electric ventilation fans for firefighting.

Valor Electric 2

Valor Electric 2

Valor Electric 2

21 Images

Product Gallery

All captured imagery is available here in a controlled horizontal gallery.

Key Highlights

Super Vac Electric PPV Fans
The Best Electric Fans Hold Up To The Fireground
Choose Your Series: Available Electric PPV Fan Frames

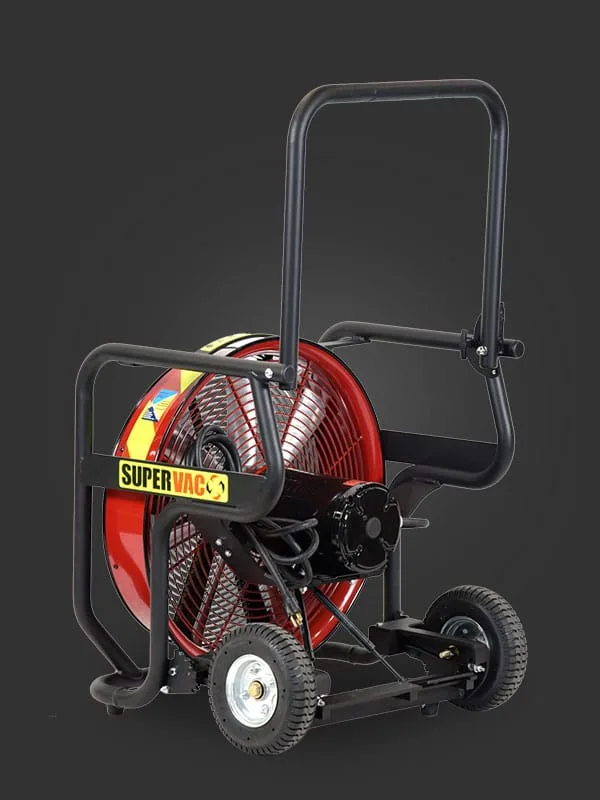

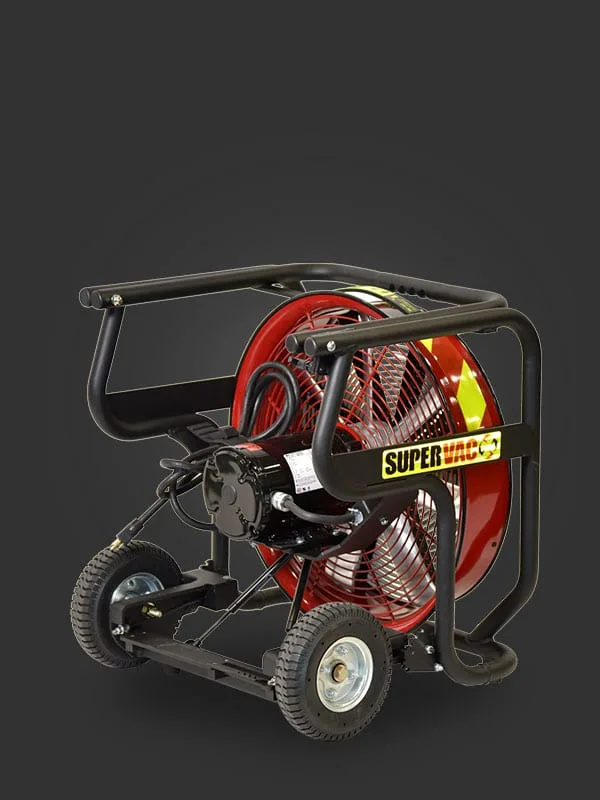

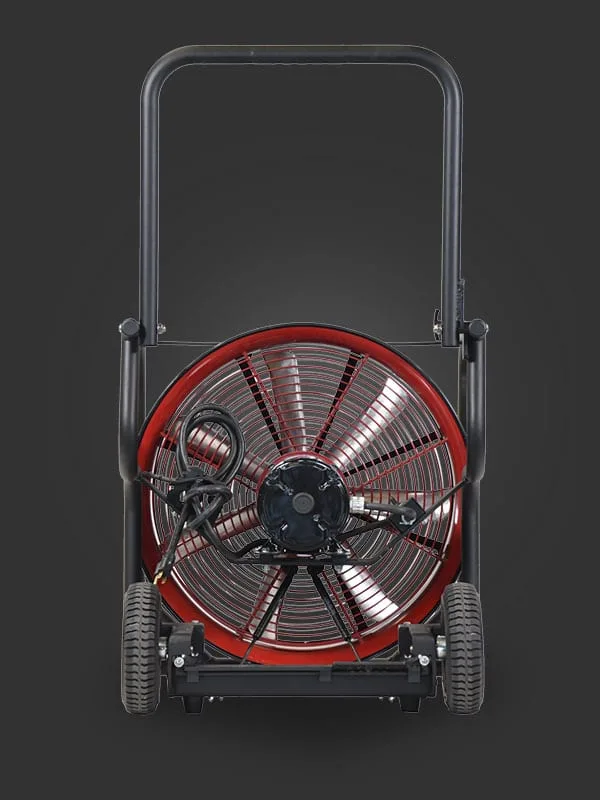

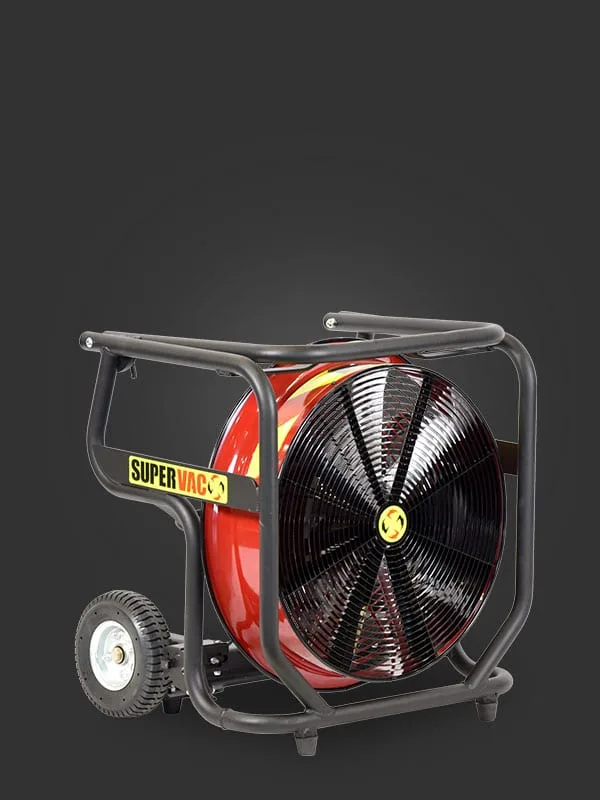

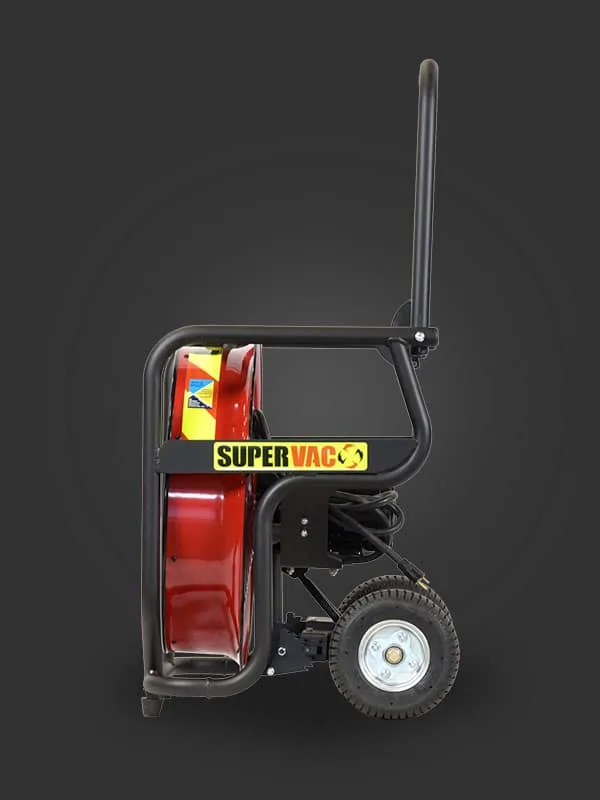

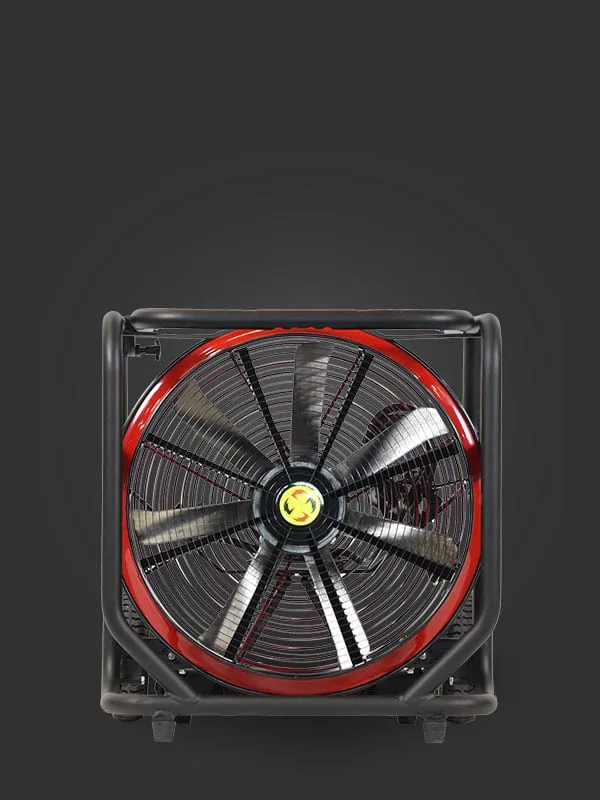

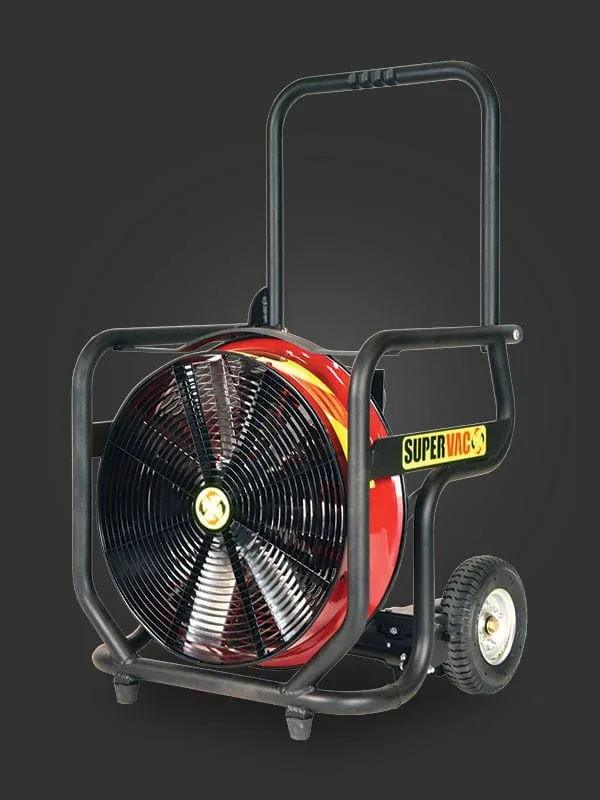

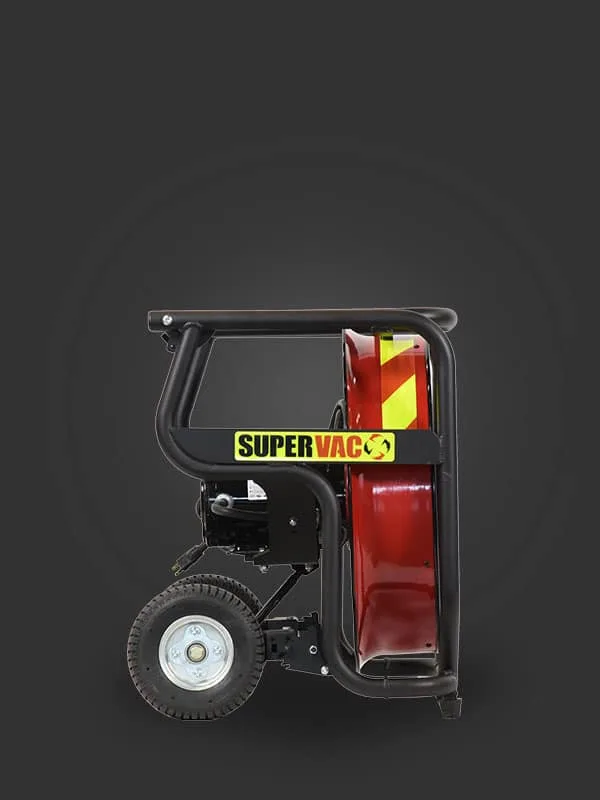

The Valor Series Aluminum Frame

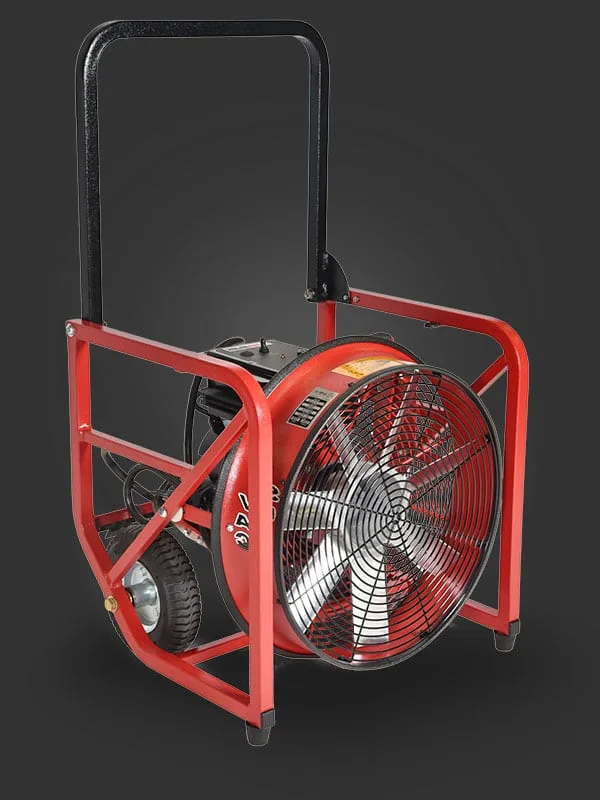

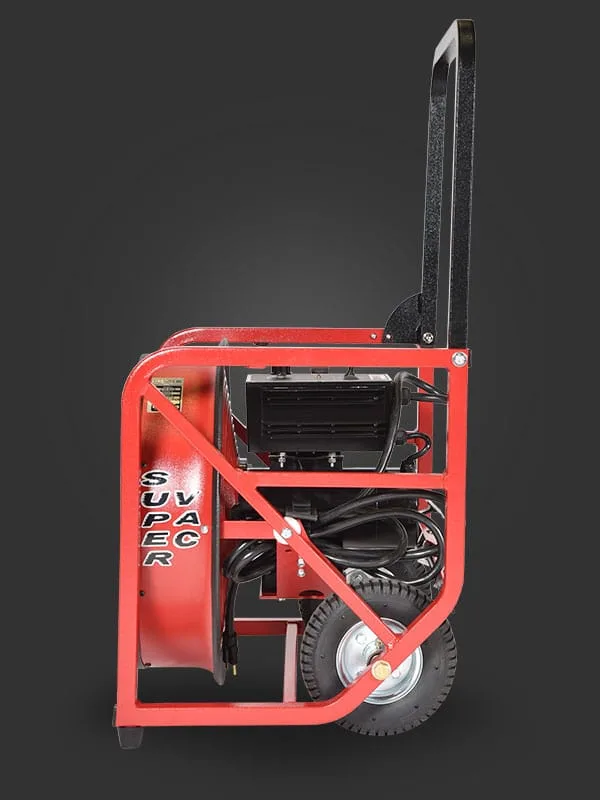

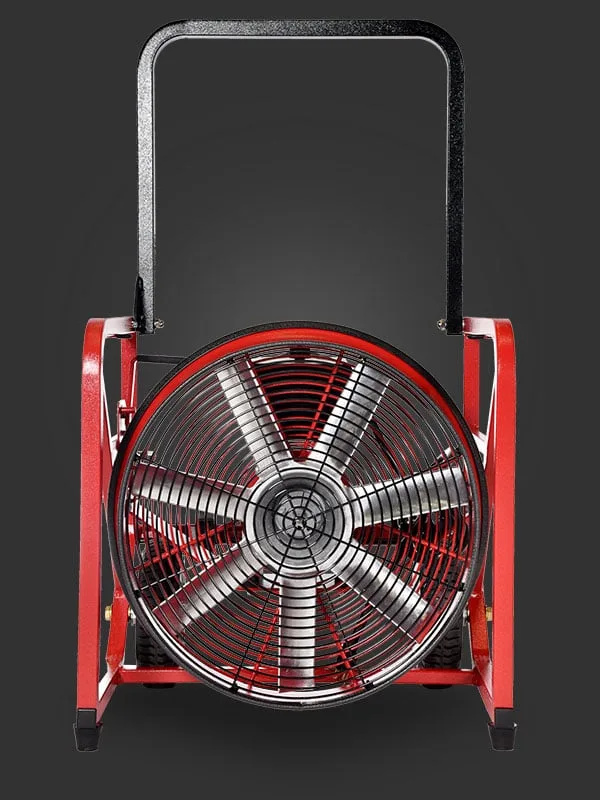

7 Series

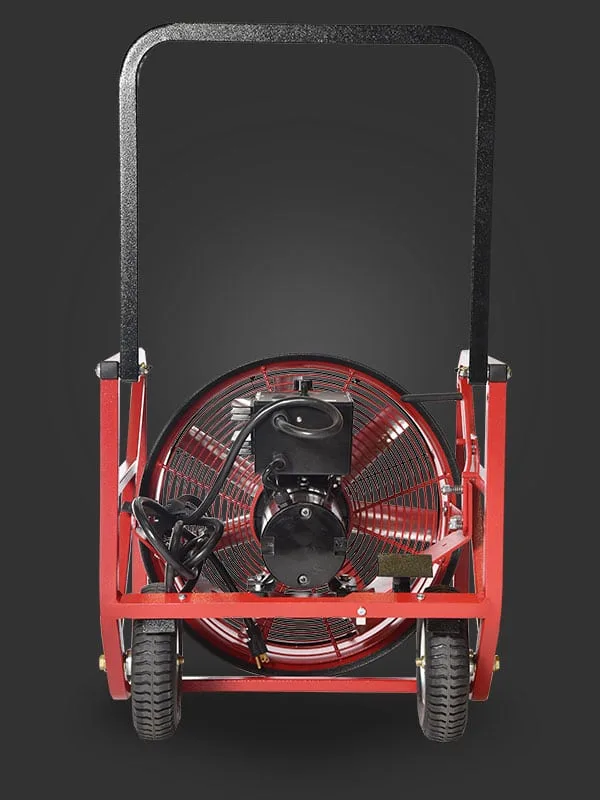

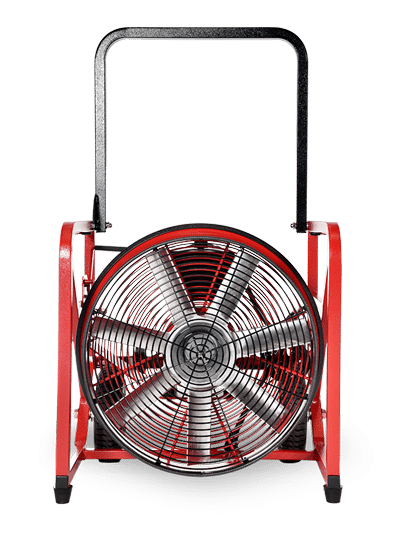

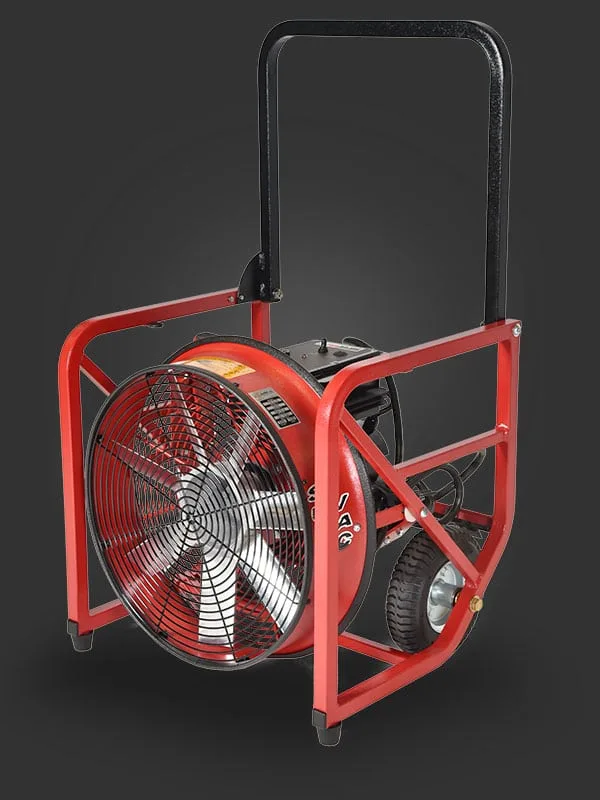

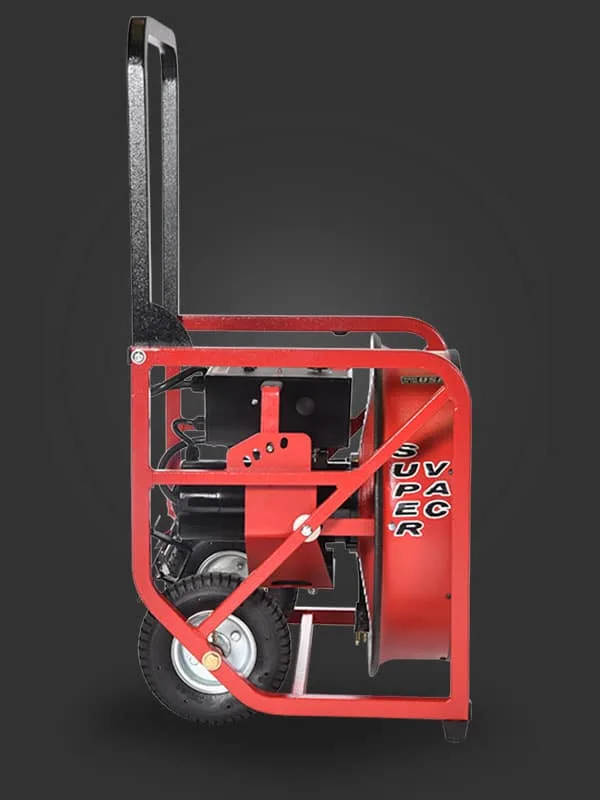

The 7 Series Steel Frame
Full Roll-Cage Frame
7-Position Tilt Frame With Step Pad

Comparison Tables

Imperial-only comparison tables rebuilt from the Super Vac source material, with product thumbnails shown above each model name.

Comparison 1
ProductSIZEWEIGHT [w/Batteries and Shore Power]DIMENSIONS H x W x DMOTORRPMSTARTRUNSETBACKANGLEOUTPUT
V18-ESV18-ESSTANDARD MOTOR
18"80 lbs23.5" x 22" x 21"Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC1,7834,000 w 15-amp circuit1,500 w9 ft13º6,378 cfm
20"20"
V20-ES82 lbs26.5" x 25" x 21.5"Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC1,7584,000 w 15-amp circuit1,500 w9 ft10º9,007 cfm
V18-EXV18-EXEXPLOSION PROOF
18"90 lbs23.5" x 22" x 21"Bluffton, single speed - rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC1,7834,000 w 15-amp circuit1,500 w9 ft13º6,378 cfm
20"20"
V20-EX92 lbs26.5" x 25" x 21.5"Bluffton, single speed - rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC1,7584,000 w 15-amp circuit1,500 w9 ft10º9,007 cfm
V18-EAV18-EAATEX RATED
18"99 lbs23.5 x 22" x 21"ATEX, single speed - 2.2kw, 50Hz, 220V AC2,8004,000 w 15-amp circuit2,200 w9 ft11º10,205 cfm
20"20"
V20-EA101 lbs26.5 x 25" x 21.5"ATEX, single speed - 2.2kw, 50Hz, 220V AC2,8004,000 w 15-amp circuit2,200 w9 ft11º14,411 cfm
V18-EVV18-EVVARIABLE SPEED
18"84 lbs23.5" x 22" x 21"RAE, TEAO variable speed, 1.5 HP, 50/60Hz, 115/230V AC2,4002,000 w 15-amp circuit1,500 w9 ft11.5º8,747 cfm
20"20"
V20-EV86 lbs26.5" x 25" x 21.5"RAE, TEAO variable speed, 1.5 HP, 50/60Hz, 115/230V AC2,4002,000 w 15-amp circuit1,500 w9 ft11º12,352 cfm
Comparison 2
ProductSIZEWEIGHT [w/Batteries and Shore Power]DIMENSIONS H x W x DMOTORRPMSTARTRUNSETBACKANGLEOUTPUT
716-E2716-E2STANDARD MOTOR
16"68 lbs20" x 20.5" x 16"Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC1,7504,000 w 15-amp circuit1,500 w6 ft18º5,890 cfm
18"18"
718-E282 lbs22" x 23.5" x 19.5"Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC1,7504,000 w 15-amp circuit1,500 w6 ft18º6,378 cfm
20"20"
720-E288 lbs25.5" x 26" x 19.5"Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC1,7504,000 w 15-amp circuit1,500 w6 ft18º9,007 cfm
24"24"
724-E2104 lbs28" x 29.5" x 21"Bluffton, single speed, 1 HP, 50/60Hz, 115/230V AC1,7504,000 w 15-amp circuit1,500 w6 ft18º13,320 cfm
716-EXP716-EXPEXPLOSION PROOF
16"78 lbs20" x 20.5" x 16"Bluffton, single speed - rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC1,7504,000 w 15-amp circuit1,500 w6 ft18º5,890 cfm
18"18"
718-EXP92 lbs22" x 23.5" x 19.5"Bluffton, single speed - rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC1,7504,000 w 15-amp circuit1,500 w6 ft18º6,378 cfm
20"20"
720-EXP98 lbs25.5" x 26" x 19.5"Bluffton, single speed - rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC1,7504,000 w 15-amp circuit1,500 w6 ft18º9,007 cfm
24"24"
724-EXP114 lbs28" x 29.5" x 21"Bluffton, single speed - rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC1,7504,000 w 15-amp circuit1,500 w6 ft18º13,320 cfm
716-EA716-EAATEX RATED
16"87 lbs20" x 20.5" x 16"ATEX, single speed, 2.2kw, 50Hz 220V AC2,8004,000 w 15-amp circuit2,200 w6 ft18º9,424 cfm
18"18"
718-EA101 lbs22" x 23.5" x 19.5"ATEX, single speed, 2.2kw, 50Hz 220V AC2,8004,000 w 15-amp circuit2,200 w6 ft18º10,205 cfm
20"20"
720-EA109 lbs25.5" x 26" x 19.5"ATEX, single speed, 2.2kw, 50Hz 220V AC2,8004,000 w 15-amp circuit2,200 w6 ft18º14,411 cfm
24"24"
724-EA123 lbs28" x 29.5" x 21"ATEX, single speed, 2.2kw, 50Hz 220V AC2,8004,000 w 15-amp circuit2,200 w6 ft18º21,312 cfm
716-EVS716-EVSVARIABLE SPEED
16"72 lbs20" x 20.5" x 16"RAE, TEAO, variable speed, 1.5 HP, 50/60Hz, 115/230V AC2,4002,000 w 15-amp circuit1,500 w6 ft18º8,078 cfm
18"18"
718-EVS86 lbs22" x 23.5" x 19.5"RAE, TEAO, variable speed, 1.5 HP, 50/60Hz, 115/230V AC2,4002,000 w 15-amp circuit1,500 w6 ft18º8,747 cfm
20"20"
720-EVS92 lbs25.5" x 26" x 19.5"RAE, TEAO, variable speed, 1.5 HP, 50/60Hz, 115/230V AC2,4002,000 w 15-amp circuit1,500 w6 ft18º12,352 cfm
24"24"
724-EVS108 lbs28" x 29.5" x 21"RAE, TEAO, variable speed, 1.5 HP, 50/60Hz, 115/230V AC2,4002,000 w 15-amp circuit1,500 w6 ft18º18,267 cfm
