Milwaukeefeatures2023 1

24 Images

Product Gallery

All captured imagery is available here in a controlled horizontal gallery.

Key Highlights

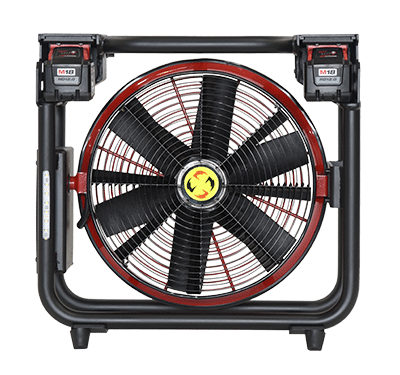

Super Vac's Milwaukee Battery-Powered Fans

Your Milwaukee Arsenal Just Grew

Compatible With Milwaukee® Redlithium™ Batteries

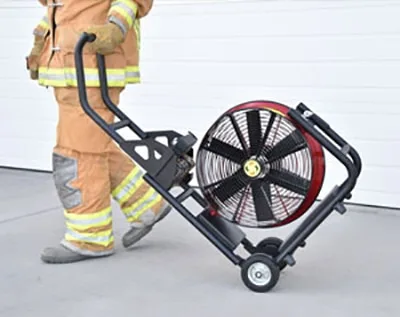

Designed For Versatility

Compact, Roll-Cage Aluminum Frame

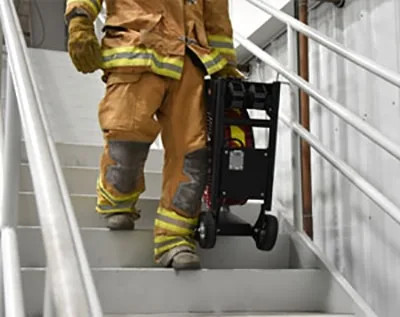

Curved Handle

Flat-Proof Rubber Tires With Skid Plates

Polymer Blade

Imperial-only comparison tables rebuilt from the Super Vac source material, with product thumbnails shown above each model name.

Comparison 1

Product	SIZE	WEIGHT [w/Batteries and Shore Power]	DIMENSIONS x W x D	MOTOR	RUNTIME [At Max Airflow]	SETBACK FOR OUTPUT RATING	ANGLE FOR OUTPUT RATING	AMCA 240-22 CERTIFIED OUTPUT
V16-BL-SP	16"	45 lbs	22.75" x 23″ x 12″	Variable-Speed DC With Standard 120-240V AC	XC 8.0Ah (2) -31 minutes HD12.0Ah (2) - 46 minutes	15 ft	10°	7,721 cfm*

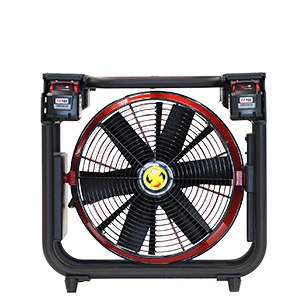

V16-BW-SP	16"	45 lbs	22.75" x 23″ x 12″	Variable-Speed DC With Standard 120-240V AC	XC 3.0Ah (2) - 31 minutes XC 5.0Ah (2) - 52 minutes	15 ft	10°	8,127 cfm*
V16-BL-SP-WH	16"	53 lbs	24.25" x 23.75″ x 12.25″	Variable-Speed DC With Standard 120-240V AC	XC 8.0Ah (2) -31 minutes HD12.0Ah (2) - 46 minutes	15 ft	10°	7,721 cfm*
V16-BW-SP-WH	16"	53 lbs	24.25" x 23.75″ x 12.25″	Variable-Speed DC With Standard 120-240V AC	XC 3.0Ah (2) - 31 minutes XC 5.0Ah (2) - 52 minutes	15 ft	10°	8,127 cfm*
V18-BL-SP	18"	58 lbs	25.50″ x 26″ x 12.25″	Variable-Speed DC With Standard 120-240V AC	XC 8.0Ah (2) -36 minutes HD12.0Ah (2) - 53 minutes	15 ft	12°	8,084 cfm*
V18-BW-SP	18"	56 lbs	25.50″ x 26″ x 12.25″	Variable-Speed DC With Standard 120-240V AC	XC 3.0Ah (2) - 29 minutes XC 5.0Ah (2) - 47 minutes	15 ft	10°	8,416 cfm*

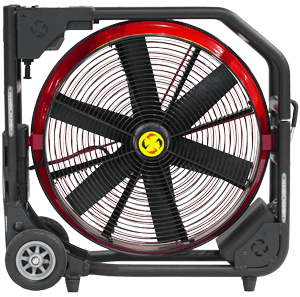

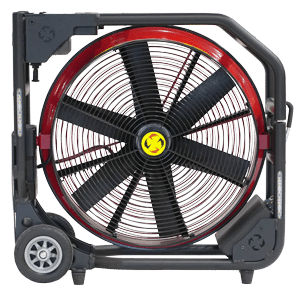

V20-BL-SP	20"	62 lbs	28.25″ x 28.75″ x 12.5″	Variable-Speed DC With Standard 120-240V AC	XC 8.0Ah (2) - 41 minutes XD 12.0Ah (2) - 67 minutes	15 ft	10°	9,867 cfm*
V20-BW-SP	20"	61 lbs	28.25″ x 28.75″ x 12.5″	Variable-Speed DC With Standard 120-240V AC	XC 3.0Ah (2) - 26 minutes XC 5.0Ah (2) - 43 minutes	15 ft	10°	9,596 cfm*

Comparison 2

Product	Dead battery fully charged in:
115V AC SuperCharger TM	1 hour (12Ah pack) / 40 minutes (8Ah pack)
12V DC Multi-Voltage Charger	3 hours 15 minutes
