Ramfan Product Family
When abnormal situations require rapid ventilation to reduce airborne hazards, the VX700 is built to move large volumes of air fast. It gives crews a true large-structure solution when smaller PPV fans are not enough.
Equipment / Ramfan
VX700
Gas PPV Blowers
Quantitative details of VX700
| Metric | Value |
|---|---|
| Airflow | Double Door 46,700 cfm |
| Airflow | Warehouse 60,200 cfm |
| Weight | 220 lbs / 100 kg |
| Voltage | 12V |
| Runtime | Runtime 2 hrs |
| Motor/Power | Engine Honda GX630 23 Hp / 17 kW |
| Blade/Impeller | Impeller 7-Blade |
| Dimensions | 49 x 33.3 x 47.3 in |
| Noise | Noise 105 dB @ 3' (1 m) / 103 dB @ 10' (3 m) |
Comparison with other Gas PPV Blowers
VX700 Literature

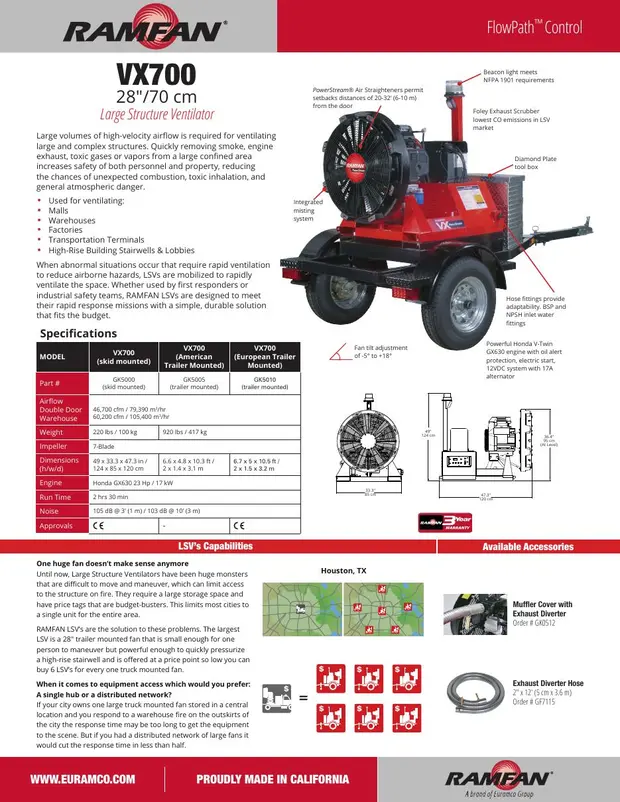

VX700 Data Sheet.pdf
VX700 User Guide.pdf
