GX500

Gas PPV Blowers

GX500 image

Ramfan Product Family

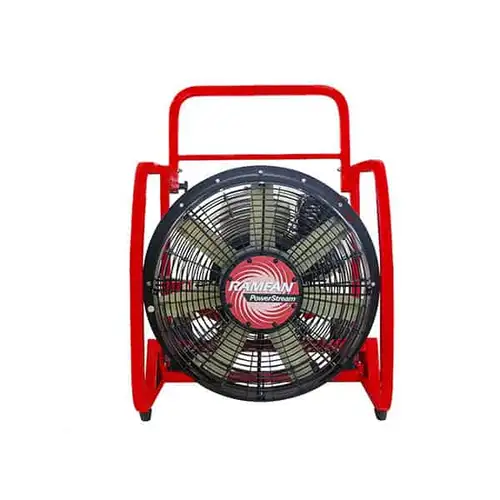

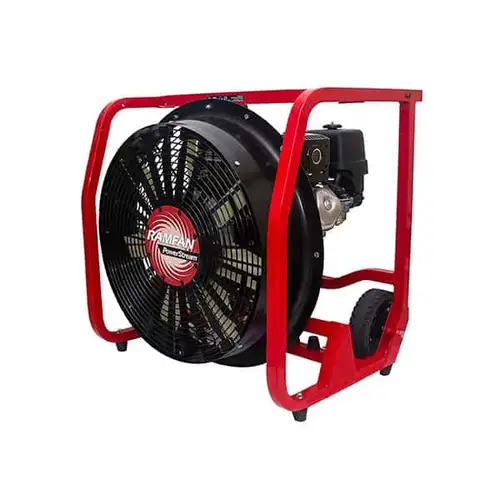

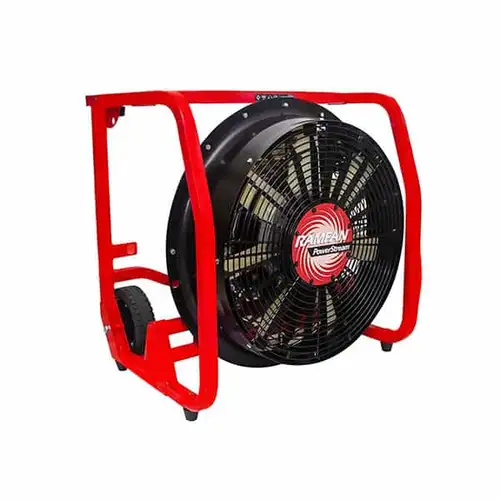

Equipped with PowerStream air straighteners that produce a powerful, straight, focused beam of air, the GX500 can be set back farther from a structure entrance without sacrificing PPV performance. The GX500 offers superior ventilation with less equipment clutter and reduced noise inside the structure while driving airflow deeper through the building than a traditional cone of air.

Quantitative details of GX500

MetricValue
AirflowDouble Door 27,800 cfm (47,260 m3/hr)
AirflowWarehouse 37,700 cfm (64,090 m3/hr)
Weight137 lbs / 62 kg
RuntimeRuntime 2 hrs
Motor/Power8.5 Hp
Blade/ImpellerImpeller 7-Blade
NoiseNoise 100 dB@3' (1 m) / 96 dB@10' (3 m)

Comparison with other Gas PPV Blowers

ProductAirflowPowerWeightRuntime
GX500 thumbnail GX500 Double Door 27,800 cfm (47,260 m3/hr)8.5 Hp137 lbs / 62 kgRuntime 2 hrs
GF164GP thumbnail GF164GP ---Runtime 1 hr
GF164SE thumbnail GF164SE -4.6 Hp59 lbs / 27 kgRuntime 1 hr
GF165 thumbnail GF165 Opening Size 12,906 cfm4.8 Hp84 lbs / 38 kgRuntime 2 hrs
GF210 thumbnail GF210 30,039 m3/hr4.8 Hp88 lbs / 40 kgRuntime 1 hr
