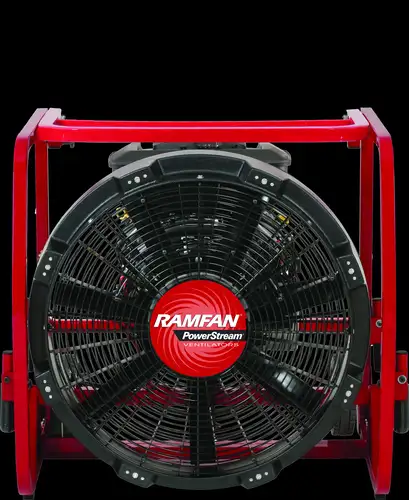

GX600

Large Structure Ventilators

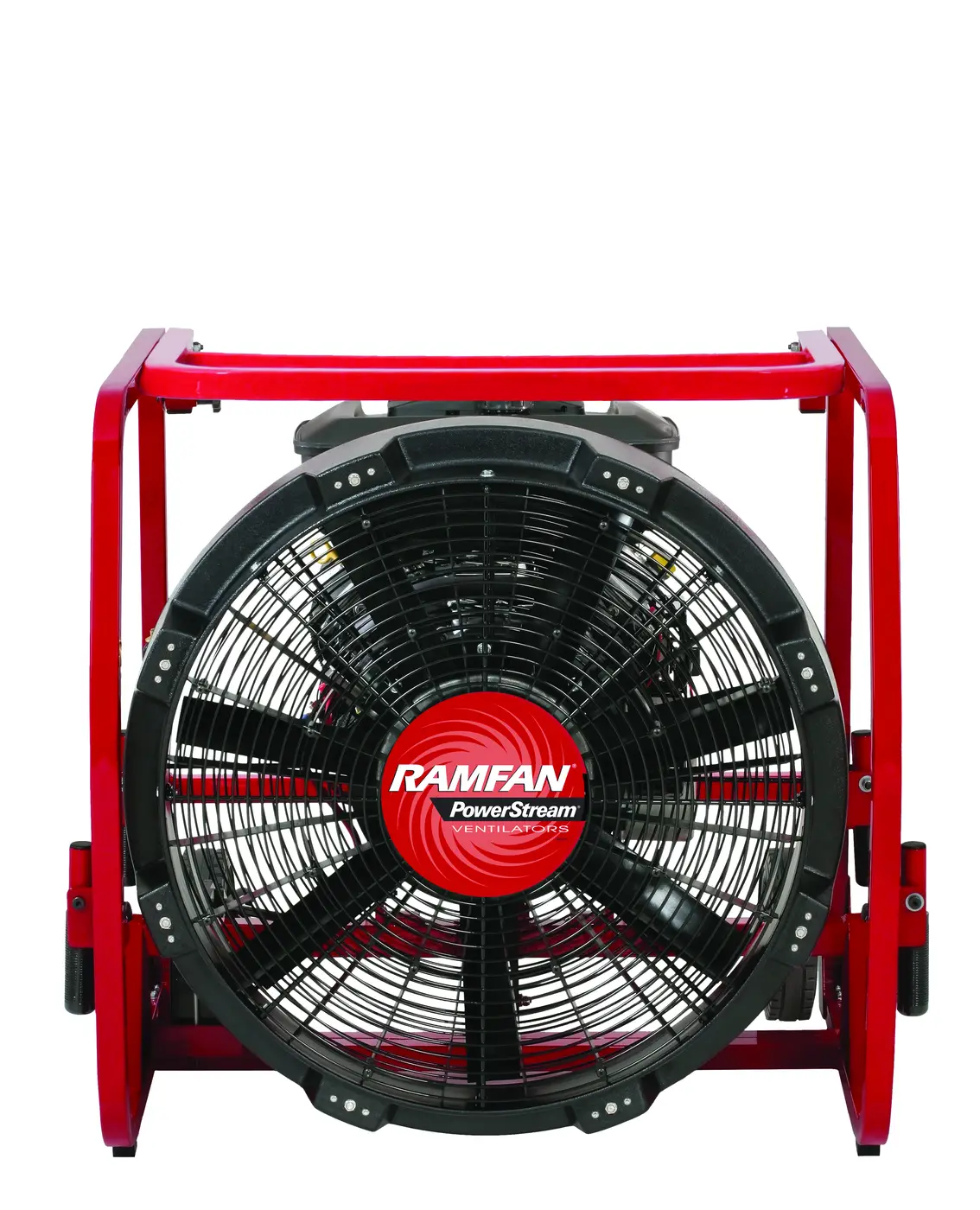

GX600 image

Ramfan Product Family

PowerSteam air straighteners produce a powerful, straight, focused beam of air, allowing the fan to be set back farther from a structure entrance without sacrificing PPV performance. The GX600 offers superior ventilation with flexible positioning, less equipment clutter, and reduced noise inside the structure. With its large airflow output, the fan is powerful enough for large-structure ventilation.

Quantitative details of GX600

MetricValue
AirflowDouble Door 32,500 cfm (55, 250m3/hr)
AirflowWarehouse 49,000 cfm (83, 300m3/hr)
Weight175 lbs / 80 kg
RuntimeRuntime 2 hrs
Motor/PowerEngine Vanguard 18 Hp / 13
Blade/ImpellerImpeller 7-Blade
NoiseNoise 105 dB@3' (1 m) / 103 dB@10' (3 m)

Comparison with other Large Structure Ventilators

ProductAirflowPowerWeightRuntime
GX600 thumbnail GX600 Double Door 32,500 cfm (55, 250m3/hr)Engine Vanguard 18 Hp / 13175 lbs / 80 kgRuntime 2 hrs
GX500 thumbnail GX500 Double Door 27,800 cfm (47,260 m3/hr)8.5 Hp137 lbs / 62 kgRuntime 2 hrs
VX700 thumbnail VX700 Double Door 46,700 cfm12V220 lbs / 100 kgRuntime 2 hrs
