Equipment / Ramfan

GX500

Large Structure Ventilators

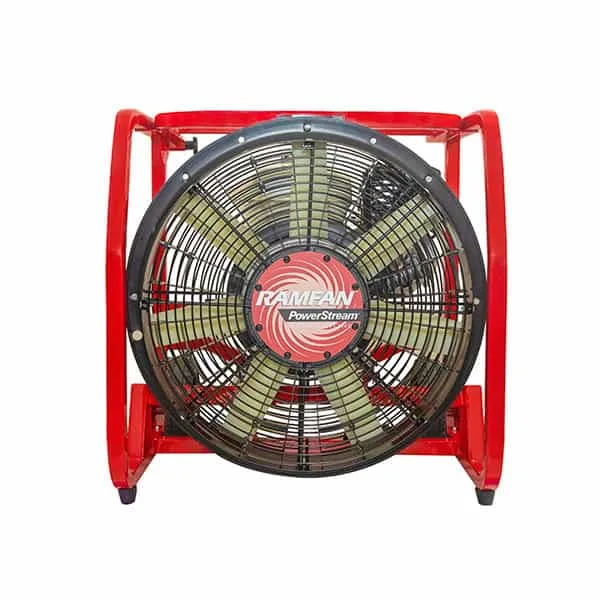

GX500 image

Ramfan Product Family

Equipped with PowerStream air straighteners that produce a powerful, straight, focused beam of air, the GX500 can be set back farther from a structure entrance without sacrificing PPV performance. The GX500 offers superior ventilation with less equipment clutter and reduced noise inside the structure while driving airflow deeper through the building than a traditional cone of air.

Quantitative details of GX500

MetricValue
AirflowDouble Door 27,800 cfm (47,260 m3/hr)
AirflowWarehouse 37,700 cfm (64,090 m3/hr)
Weight137 lbs / 62 kg
RuntimeRuntime 2 hrs
Motor/Power8.5 Hp
Blade/ImpellerImpeller 7-Blade
NoiseNoise 100 dB@3' (1 m) / 96 dB@10' (3 m)

Comparison with other Large Structure Ventilators

ProductAirflowPowerWeightRuntime
GX500 thumbnail GX500 Double Door 27,800 cfm (47,260 m3/hr)8.5 Hp137 lbs / 62 kgRuntime 2 hrs
GX600 thumbnail GX600 Double Door 32,500 cfm (55, 250m3/hr)Engine Vanguard 18 Hp / 13175 lbs / 80 kgRuntime 2 hrs
VX700 thumbnail VX700 Double Door 46,700 cfm12V220 lbs / 100 kgRuntime 2 hrs
