HURST EXTRICATION

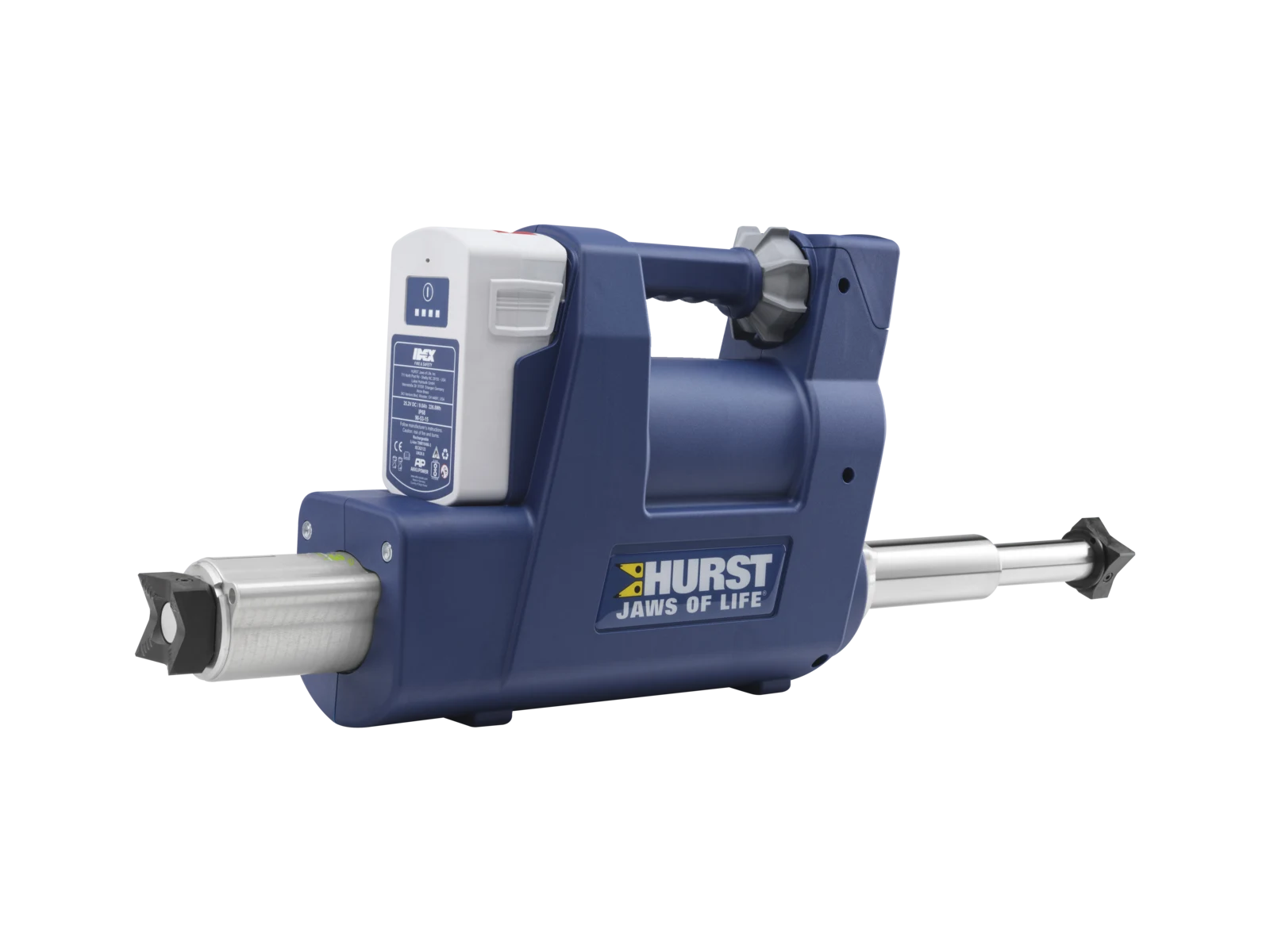

HURST R521 Ram
Long-stroke ram for wider displacement operations.
Product Profile
The HURST R521 E3 Ram creates wide rescue openings without lengthy hoses or power units, giving crews more freedom to work in difficult environments. It is built to push hard and move freely wherever the scene demands.
Its smart dashboard, dual sharp claws, and long 53.5-inch extended reach help crews power through tougher situations while keeping setup fast and mobility high.
Features and benefits
Wide opening reach
The 53.5-inch extended length helps create broad rescue openings on larger incidents.
Watertight durability
The ram is built for operation in both fresh and salt water.
Dashboard feedback
Power levels, battery charge status, and connected battery confirmation remain visible during operation.
Turbo response
Turbo functionality helps crews move faster during time-critical rescue operations.
Quiet, visible operation
A quieter motor and front-and-back LED lighting support work in low-visibility environments.
Operator control
The ergonomic Star Grip and lighter cordless platform help crews maneuver the tool more easily on scene.
Quantitative details of HURST R521 Ram
Length retracted
22.8 in
Length extended
53.5 in
Width
5.5 in
Height
12.9 in
Weight (without battery)
41.7 lbs
Stroke overall
30.7 in
HSF Piston 1
28,600 lbs
HSF Piston 2
13,500 lbs
Ingress protection
IP68
NFPA 1960:2024 compliant
Yes
Rams Comparison Region
Request Demo
Want to see what true extrication power looks and feels like?
Request a demo today!
HURST R521 Ram Resources
.webp)

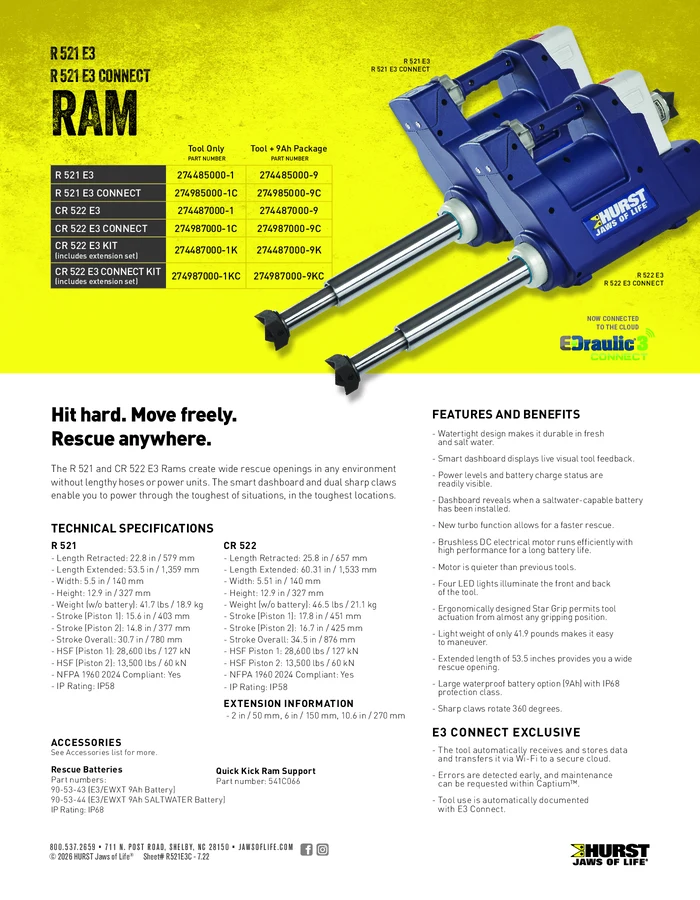

E3 Connect R521

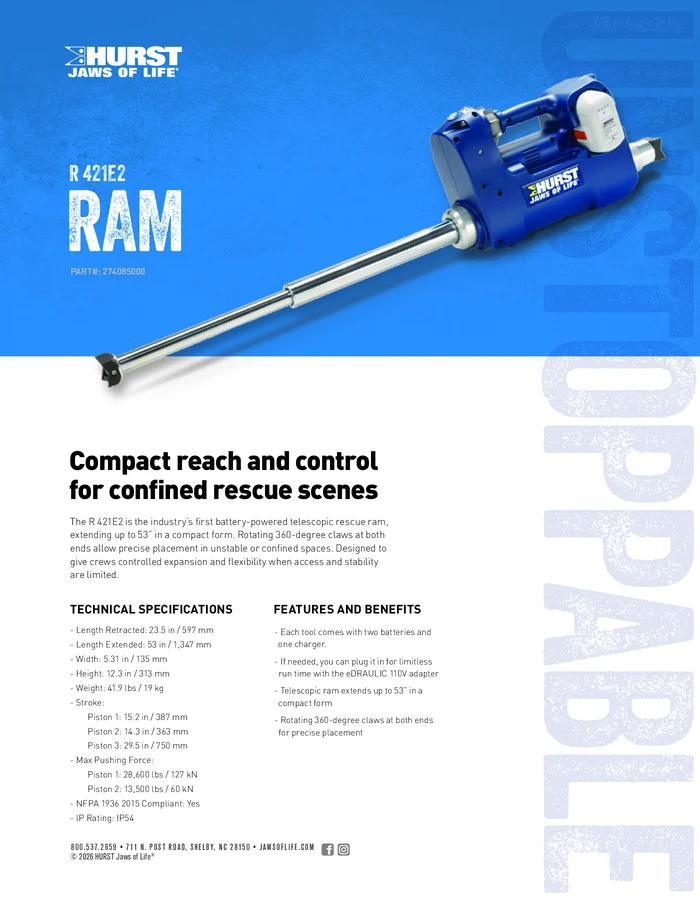

E2 R421 Overview
