HURST M40 Spreader
Wide-opening spreader for high displacement and pull work.
Product Profile
The HURST M40 E3 Spreader is a standout 40-inch spreader built to make huge gaps in a single move when speed and precision are non-negotiable. It puts immense power in the operators hands for high-pressure rescue situations.
Its watertight construction and smart dashboard feedback help crews keep moving faster and with more confidence, even when conditions are harsh and the spreader is being pushed to its limits.
Features and benefits
Watertight durability
The spreader is built for operation in both fresh and salt water.
Smart dashboard feedback
The dashboard keeps live visual tool feedback, power levels, and battery status visible during the rescue.
Turbo response
Turbo functionality helps speed up rescue progress when conditions are time-critical.
Integrated cylinder body
A single integrated-cylinder design keeps the tool compact and efficient under load.
Built-in squeezing plates
Squeezing plates in the arms add more controlled contact during rescue work.
Shark Tooth tip design
Removable Shark Tooth tips give the tool a multifunctional gripping profile for challenging materials.
Quantitative details of HURST M40 Spreader
Length
43.6 in
Width
12.1 in
Height
9.96 in
Weight
54.9 lbs
Spreading distance
40.1 in
Max spreading force
112,400 lbs
Max pulling force
11,240 lbs
NFPA HSF
16,190 lbs
NFPA LSF
10,120 lbs
NFPA HPF
9,442 lbs
NFPA LPF
5,171 lbs
Ingress protection
IP68
NFPA 1960:2024 compliant
Yes
Spreaders Comparison Region
Request Demo
Want to see what true extrication power looks and feels like?
Request a demo today!
HURST M40 Spreader Resources

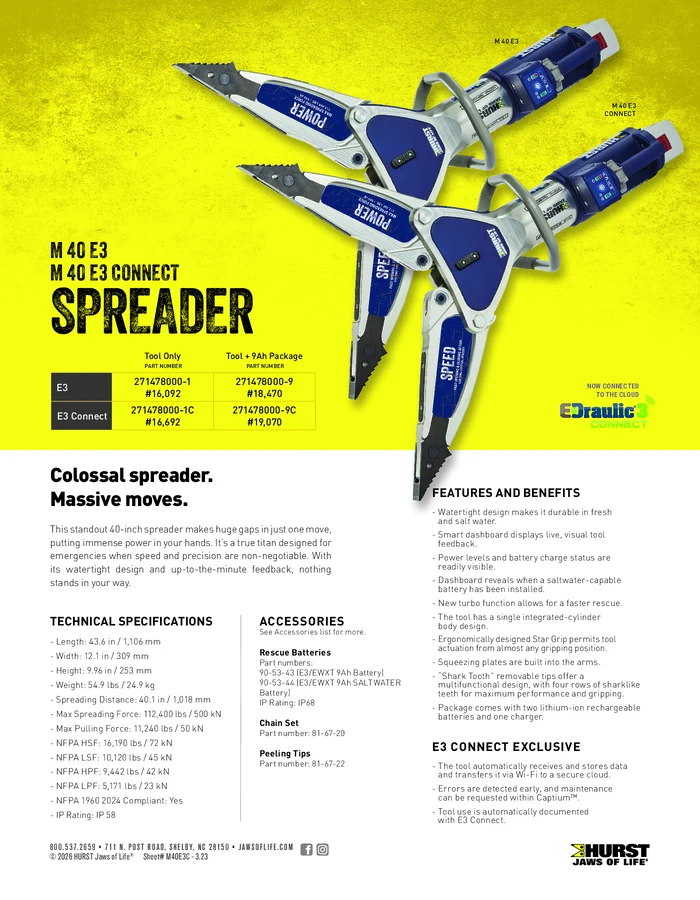

E3 Connect M40

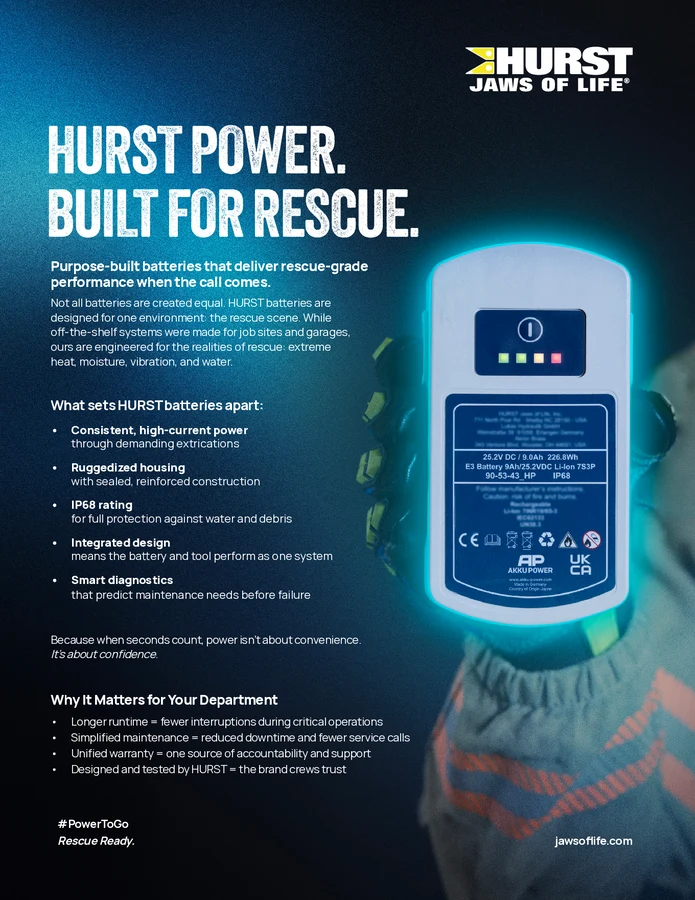

HURST Battery Platform Overview
