Specs Summary

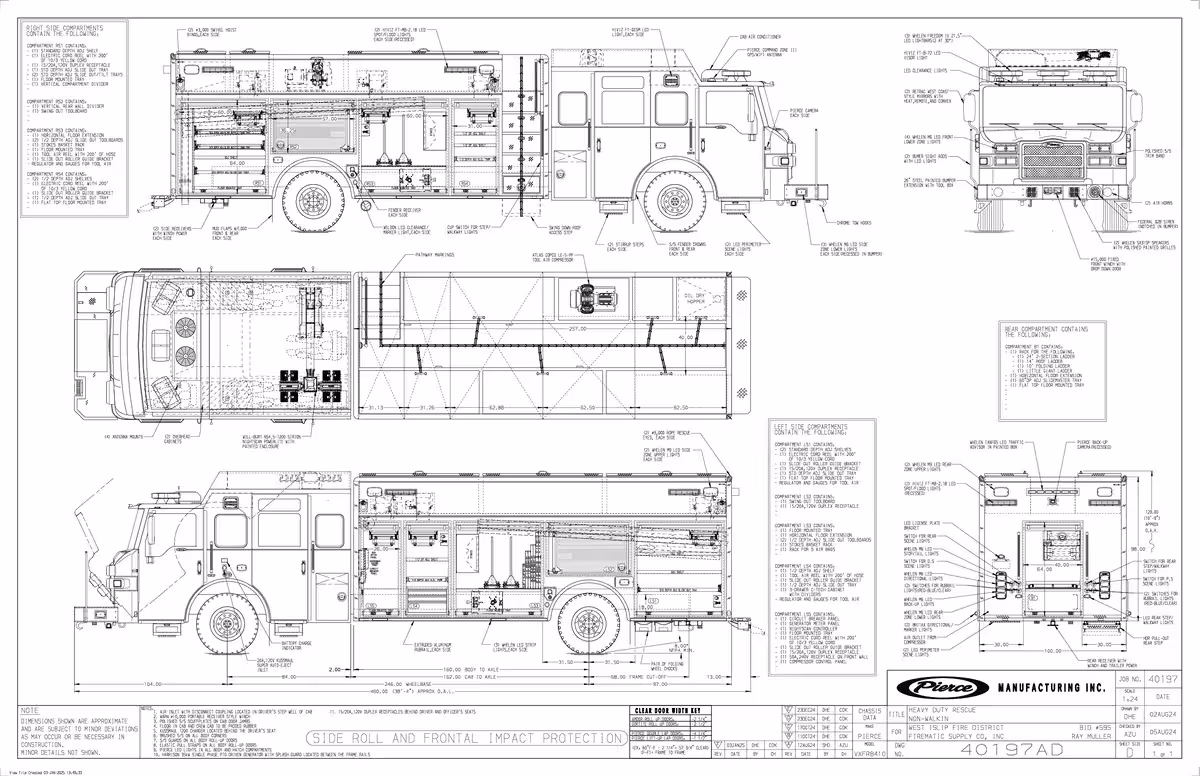

Drawing PDF- Body Style: HDR non-walk-in aluminum rescue body
- Chassis: Velocity Chassis (Big Block), 2010
- Cab: Velocity FR 8410 raised-roof cab
- Engine: Cummins X12, 525 hp, 1,695 lb-ft
- Front Tires: Michelin XZY3 425/65R22.50, 20-ply
- Pump: Not required
- Rear Axle: Meritor RS26-185, 27,000 lb
- Rear Tires: Michelin XDN2 12R22.50, 16-ply single
- Transmission: Allison 4000 EVS automatic transmission
- Foam System: Not required
- Body: Heavy Rescue
- Front Axle: Oshkosh TAK-4 non-drive axle, 24,000 lb
