Specs Summary

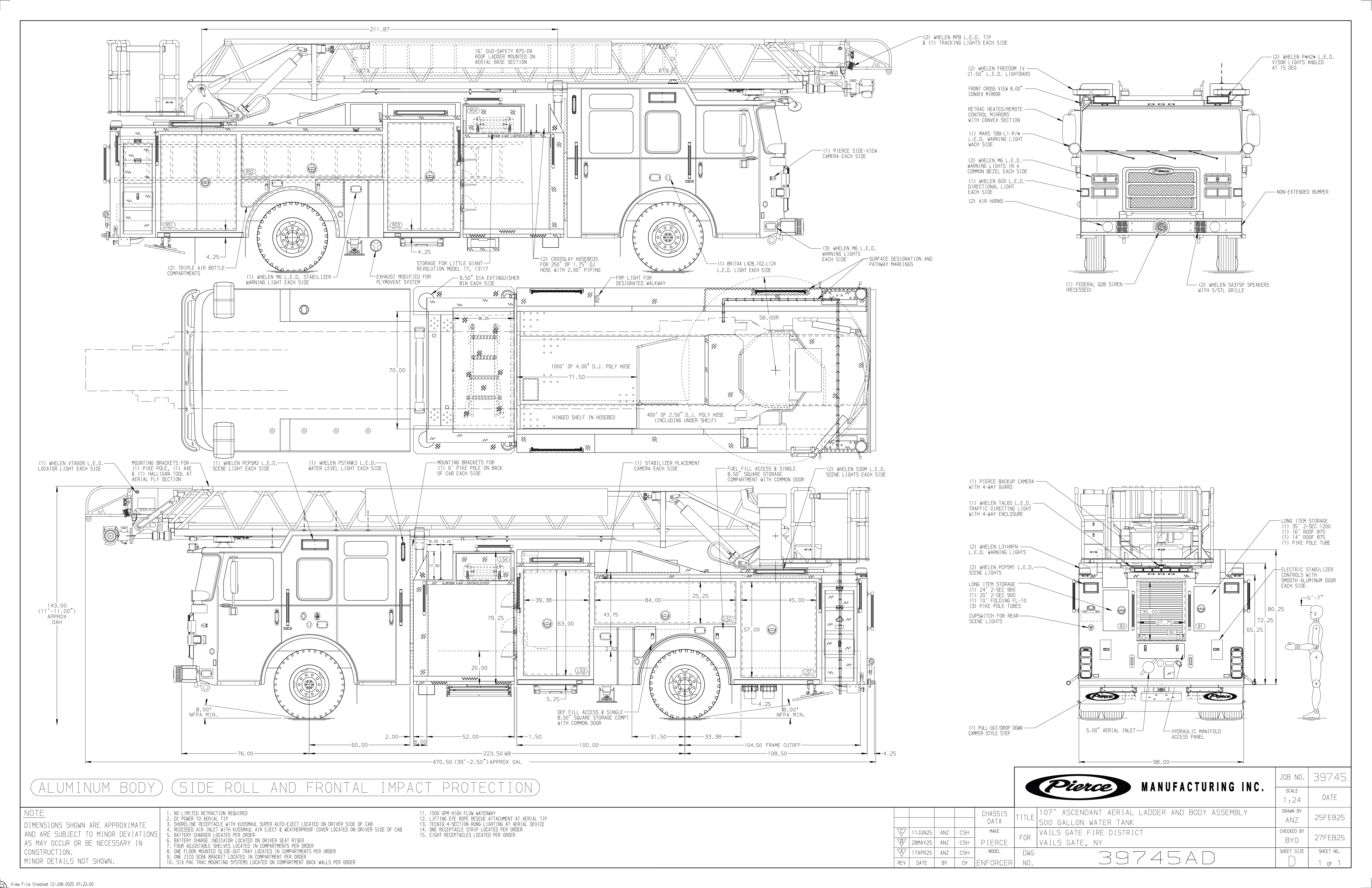

Drawing PDF- Chassis: ENFORCER
- Wheelbase: 223.50 WB
- Body Style: Aerial, HD Ladder 107' ASL Single, Quint, Alum Body
- Chassis: Enforcer Chassis, Aerials, Single Axle, Ascendant
- Cab: Cab, Enforcer, 6010 with Notch
- Engine: Engine, Cummins X12, 525 hp, 1695 lb-ft, with OBD, EPA 2024, Enforcer
- Front Suspension: Axle, Front, Oshkosh TAK-4, Non Drive, 22,800 lb
- Front Tires: Tires, Front, Michelin, XZY3 (wb), 425/65R22.50, 20 ply
- Pump: Pump, Waterous, CSU, 1500 GPM, Single Stage
- Rear Axle: RS30185NCRF668-538 Axle, Rear, Meritor RS30-185, 33,500 lb, Saber FR/
- Rear Tires: Tires, Rear, Michelin, X WORKS XDY 315/80R22.50, LRL, Single, Fire Serv Load
- Water Tank: Tank, Water, 500 Gallon, Poly, Ascendant Single Axle
Opens an in-page PDF viewer. Use the drawing link above for a direct PDF tab.
