Specs Summary

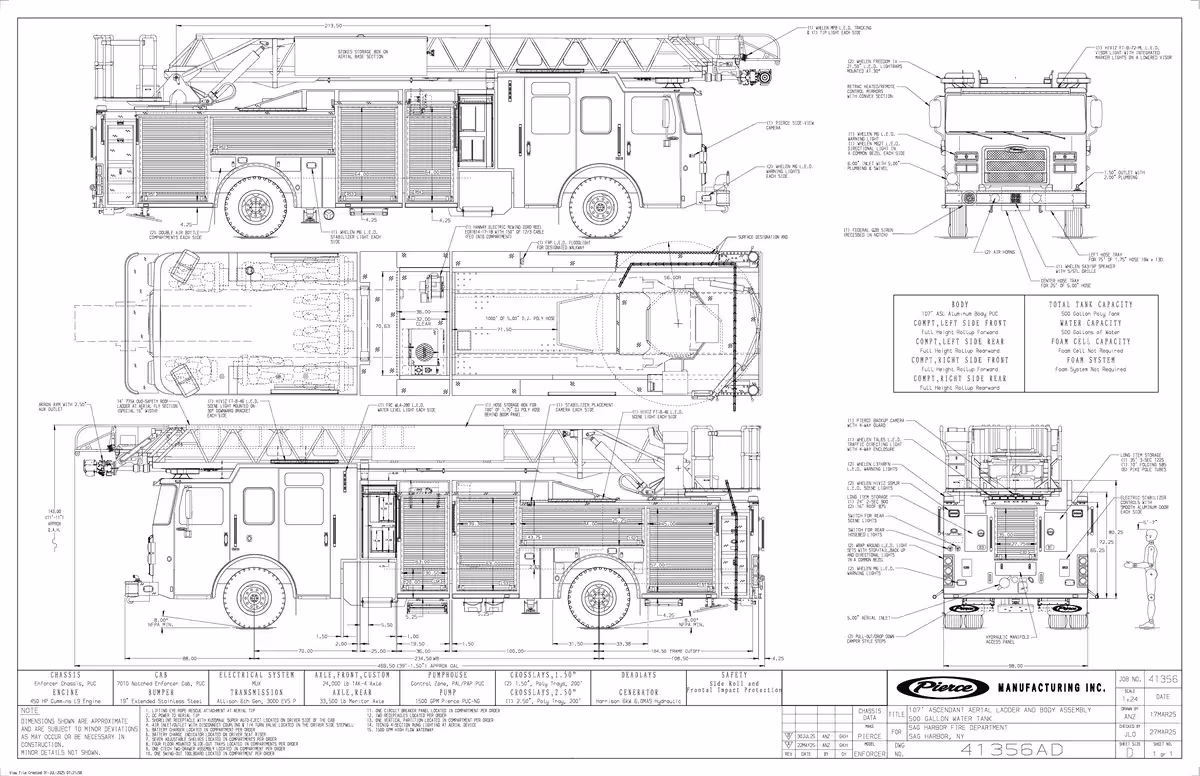

Drawing PDF- Body Style: 07' ASL aluminum aerial body
- Chassis: Velocity Chassis (Big Block), 2010
- Cab: Velocity FR 8410 raised-roof cab
- Engine: Cummins X12, 525 hp, 1,695 lb-ft
- Rear Axle: Meritor RS26-185, 27,000 lb
- Water Tank: 500-gallon poly tank
- Body: Aerial Ladder
- Front Axle: Oshkosh TAK-4 independent front axle, 24,000 lb
- Generator: Harrison 35 kW, single-phase PTO-driven generator
- Hose Storage: Center tray for 5" hose plus side hose tray for 1.75" hose
- Aerial Device: Three-section aerial ladder
- Lighting: Whelen LED warning package with HiViz scene lighting
Opens an in-page PDF viewer. Use the drawing link above for a direct PDF tab.
