Delivered to Bellerose FD in Bellerose Village, NY.
- Pierce Enforcer custom cab & chassis — 4-door, half-height doors, level roof, seating for 8, built in Bradenton, FL.
- Cummins L9 engine, 450 HP / 1,250 lb-ft paired with an Allison 6th-Gen 3000 EVS automatic and Jacobs engine brake.
- Waterous CSU 1,500 GPM single-stage pump (control-zone side-mount panel, FRC Pump Boss pressure governor).
- 750-gallon UPF poly water tank with lifetime tank warranty, plus a 20-gallon Class B foam cell on a Husky 3 single-agent foam system.
- TAK-4 independent front suspension — Pierce's signature ride/handling and tight-turning front axle (18,000 lb front / 24,000 lb rear, 42,000 lb GVW).
- Front intake & front deluge — 4"–6" front suction over the top of the bumper with a 1.5" front discharge in the bumper tray.
- Elkhart Vulcan 8500-02 deck gun with ST-194 stacked tips on a TFT Extend-a-Gun XG12 3" deluge riser.
- Full ground-ladder complement — 24' two-section, 14' roof, and 10' folding Duo-Safety ladders in enclosed body storage.
- Amdor roll-up compartment doors (full-height side compartments, LED strip lighting) with painted-to-match lower body.
- Advanced safety suite — HAAS Alert R2V collision mitigation, Wabco ESC/ABS/ATC vehicle stability, Vehicle Data Recorder w/ seat-belt monitor, and a Pierce 7" HD backup camera.
- Whelen warning package — 72" Freedom IV-Q lightbar, front/side/rear zone LEDs, Federal Q2B mechanical siren plus Whelen electronic siren.
- Two-tone paint scheme — #90 Red lower / #101 Black upper, gold-leaf Maltese cross emblems, diamond-grade reflective striping and rear chevron.

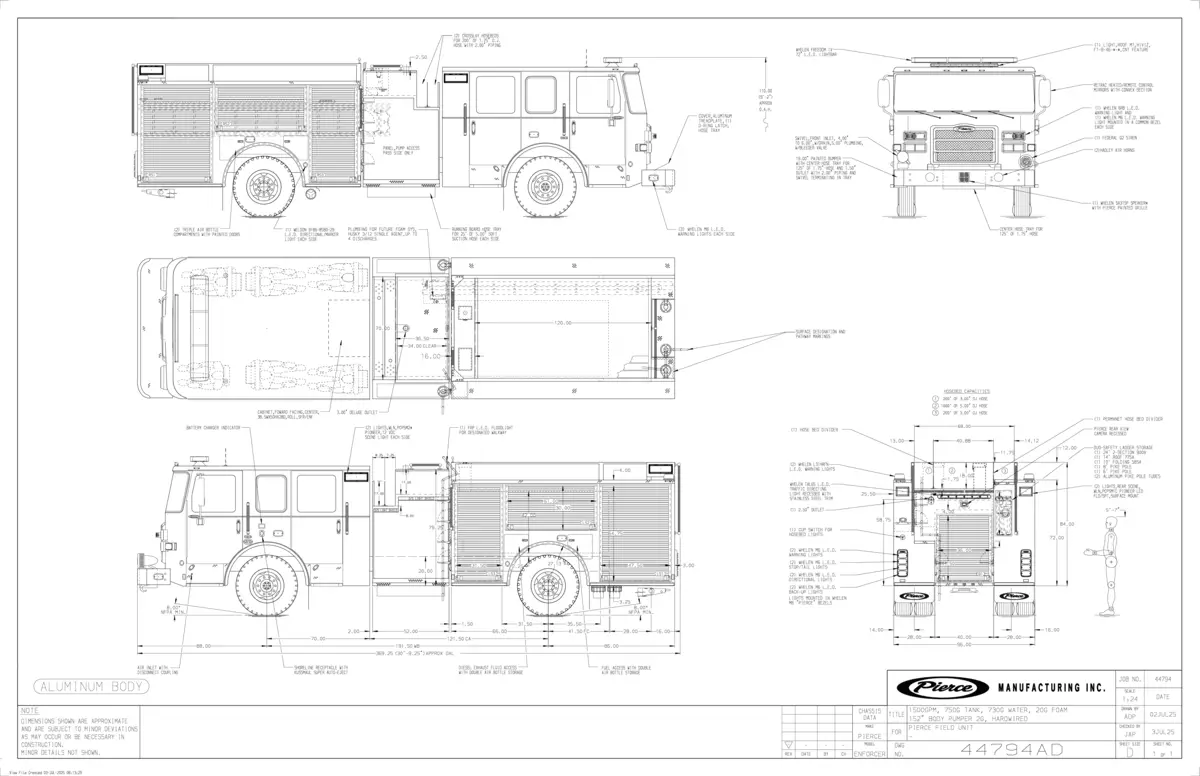

Select the preview or Download PDF to save the drawing.
