Equipment / Super Vac
Negative Pressure Ventilation
Smoke ejectors are a firefighter favorite negative pressure ventilation fan. This lineup offers battery, gas, electric and hydraulic smoke fans for smoke ventilation.
Key Highlights
Negative Pressure Ventilation
The Trusted Lineup Of Smoke Ejectors
The Go-To Smoke Ventilation Fan Among Firefighters
Pick Your Smoke Fan'S Power Source

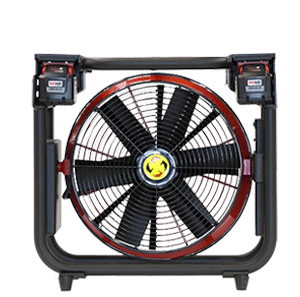

Battery Smoke Ejectors

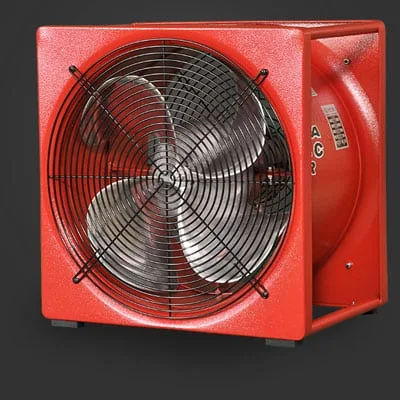

Electric Smoke Ejectors
Comparison Tables
Imperial-only comparison tables rebuilt from the Super Vac source material, with product thumbnails shown above each model name.
Comparison 1
| Product | Model | SIZE | WEIGHT | DIMENSIONS H x W x D | MOTOR | RUN TIME | SETBACK | OUTPUT |
|---|---|---|---|---|---|---|---|---|
| DEWALT FLEXVOLT | P164-BD | 16" | 38 lbs | 25.5" x 18.875" x 9.75" | Totally Enclosed Variable-Speed DC | 9.0Ah (2) - 33 minutes 12.0Ah (2) - 44 minutes 15.0Ah (2) - 56 minutes | 14 ft | 6,700 cfm |
 MILWAUKEE | P164-BL | 16" | 38 lbs | 25.5" x 18.875" x 9.75" | Totally Enclosed Variable-Speed DC | XC 8.0Ah (2) - 40 minutes HD 12.0Ah (2) - 58 minutes | 14 ft | 6,700 cfm |
| MAKITA XGT | P164-BK | 16" | 38 lbs | 25.5" x 18.875" x 9.75" | Totally Enclosed Variable-Speed DC | 4.0Ah (2) - 26 minutes 5.0Ah (2) - 34 minutes 8.0 Ah (2) - 52 minutes | 14 ft | 6,700 cfm |
Comparison 2
| Product | Model | SIZE | WEIGHT | DIMENSIONS H x W x D | MOTOR | RPM | START | RUN | OUTPUT |
|---|---|---|---|---|---|---|---|---|---|
| STANDARD MOTOR | P124S | 12" | 40 lbs | 15.5" x 15" x 13" | Bluffton, single speed, TEAO, 1/2 HP, 50/60Hz, 115/230V AC | 3,450 | 2,000 w 15-amp circuit | 800 w | 3,700 cfm |
| P164S | 16" | 44 lbs | 19.25" x 18.75" x 13" | Bluffton, single speed, TEAO, 1/3 HP, 50/60Hz, 115/230V AC | 1,725 | 2,000 w 15-amp circuit | 700 w | 5,200 cfm | |
| P164S-AL | 18" | 40 lbs | 19.25" x 18.75" x 13" | Bluffton, single speed, TEAO, 1/3 HP, 50/60Hz, 115/230V AC, Aluminum vs Steel Frame Design | 1,725 | 2,000 w 15-amp circuit | 700 w | 5,200 cfm | |
| P200S | 20" | 88 lbs | 25.5" x 24.75" x 16.25" | Bluffton, single speed, TEAO, 1 HP, 50/60Hz, 115/230V AC | 1,725 | 4,000 w 15-amp circuit | 1,500 w | 9,800 cfm | |
| P200S-AL | 20" | 70 lbs | 25.5" x 24.75" x 16.25" | Bluffton, single speed, TEAO, 1 HP, 50/60Hz, 115/230V AC, Aluminum vs Steel Frame Design | 1,725 | 4,000 w 15-amp circuit | 1,500 w | 9,800 cfm | |
| P244S | 24" | 110 lbs | 28.5" x 28" x 18.75" | Bluffton, single speed, TEAO, 1-1/2 HP, 50/60Hz, 115/230V AC | 1,725 | 6,000 w 20-amp circuit | 2,100 w | 11,800 cfm | |
| EXPLOSION PROOF | P124SE | 12" | 42 lbs | 15.5" x 15" x 13" | Bluffton, single speed, hazardous location rated for Class 1 Group D, 1/2 HP, 50/60Hz, 115/230V AC | 3,450 | 2,000 w 15-amp circuit | 800 w | 3,700 cfm |
| P164SE | 16" | 49 lbs | 19.25" x 18.75" x 13" | Bluffton, single speed, hazardous location rated for Class 1 Group D, 1/3 HP, 50/60Hz, 115/230V AC | 1,725 | 2,000 w 15-amp circuit | 700 w | 5,200 cfm | |
| P164SE-AL | 16" | 45 lbs | 19.25" x 18.75" x 13" | Bluffton, single speed, hazardous location rated for Class 1 Group D, 1/3 HP, 50/60Hz, 115/230V AC, Aluminum vs Steel Frame Design | 1,725 | 2,000 w 15-amp circuit | 700 w | 5,200 cfm | |
| P200SE | 20" | 93 lbs | 22.5" x 24.75" x 16.25" | Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC | 1,725 | 4,000 w 15-amp circuit | 1,500 w | 9,800 cfm | |
| P200SE-AL | 24" | 78 lbs | 25.5" x 24.75" x 16.25" | Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC, Aluminum vs Steel Frame Design | 1,725 | 4,000 w 15-amp circuit | 1,500 w | 9,800 cfm | |
| P244SE | 24" | 115 lbs | 28.5" x 28" x 18.75" | Bluffton, single speed, hazardous location rated for Class 1 Group D, 1 -1/2HP, 50/60Hz, 115/230V AC | 1,725 | 6,000 w 20-amp circuit | 2,100 w | 11,800 cfm | |
| ATEX RATED | P164SEA | 16" | 74 lbs | 21.25" x 18.75" x 15.5" | ATEX, single speed, 2.2kw, 50Hz, 220V AC | 2,800 | 4,000 w 15-amp circuit | 2,200 w | 8,320 cfm |
| P200SEA | 20" | 103 lbs | 25.5" x 24.75" x 16.25" | ATEX, single speed, 2.2kw, 50Hz, 220V AC | 2,800 | 4,000 w 15-amp circuit | 2,200 w | 15,680 cfm |
Comparison 3
| Product | Model | SIZE | WEIGHT | DIMENSIONS H x W x D | ENGINE | DISPLACEMENT | RPM | OUTPUT |
|---|---|---|---|---|---|---|---|---|
| HONDA ENGINE | GP164S | 16" | 55 lbs | 19.5" x 19" x 15.5" | Honda GX120 | 118 cc | 3,500 | 9,250 cfm |
| GP167S | 16" | 58 lbs | 19.5" x 19" x 15.5" | Honda GX160 | 163 cc | 3,500 | 9,500 cfm | |
| GP187S | 18" | 76 lbs | 23.25" x 23" x 16.5" | Honda GX200 | 196 cc | 3,500 | 10,551 cfm |

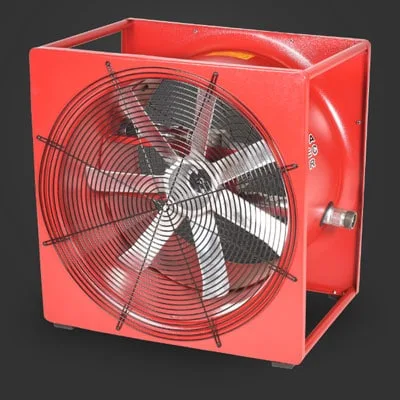

Comparison 4
| Product | SIZE | WEIGHT | DIMENSIONS H x W x D | POWER | CONSUMPTION | OUTPUT |
|---|---|---|---|---|---|---|
| P124WT | 12" | 50 lbs | 15.5" x 15" x 13" | 5.5 HP Water Turbine 100 - 250 PSI | 65 gpm | 4,300 cfm |
| P164WT | 16" | 57 lbs | 19.25" x 18.75" x 13" | 5.5 HP Water Turbine 100 - 250 PSI | 65 gpm | 9,950 cfm |
| P200WT | 20" | 88 lbs | 22.5" x 24.75" x 16.25" | 5.5 HP Water Turbine 100 - 250 PSI | 65 gpm | 10,800 cfm |
| P244WT | 24" | 123 lbs | 28.5" x 28" x 18.75" | 5.5 HP Water Turbine 100 - 250 PSI | 65 gpm | 14,200 cfm |
