Enforcer Ascendant 107' Heavy-Duty Aerial Ladder - 46566
Current Pierce stock unit with linked chassis/body references, local drawing file, and stock specifications.
Stock Specifications
| Job # | 46566 |
|---|---|
| Availability | In Production |
| Chassis | Enforcer |
| Body | Ascendant 107’ Heavy-Duty Aerial Ladder |
| Actual Overall Height | 11' 10.5" |
| Engine | PACCAR MX-13 |
| Horsepower | 510 hp |
| Front Suspension | TAK-4 Independent Front Suspension |
| Rear Suspension | Spring |
| Electrical System | Command Zone |
| Drawing File | Available |

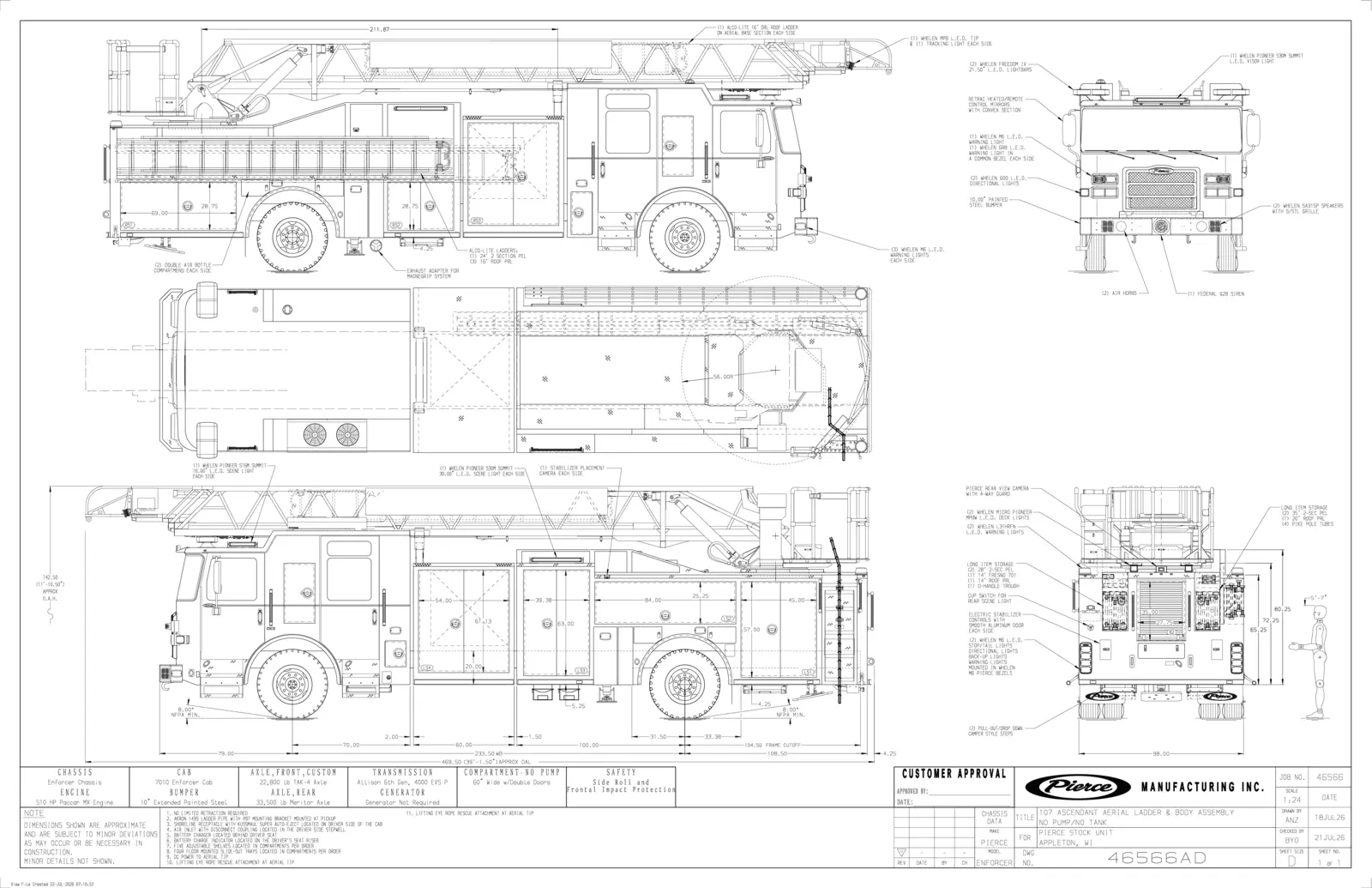

Truck Drawing
The apparatus drawing below opens in a larger modal viewer and can also be downloaded as the original PDF.
