Rescue representative apparatus

Firematic B.R.A.T.

Rescue

A compact rescue-body platform for low-clearance, tight-access, and initial-attack work.

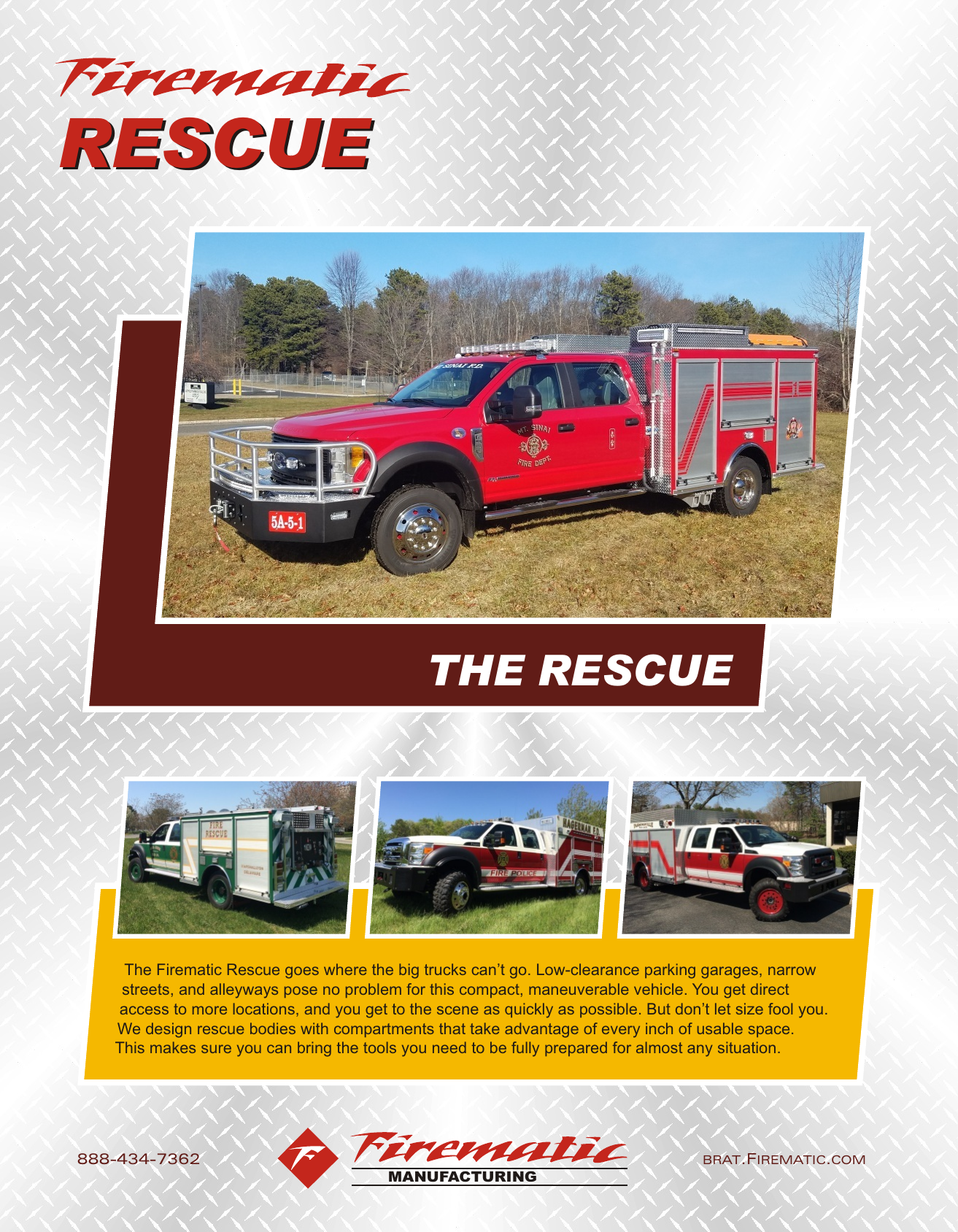

Download LiteratureBrowse Rescue deliveries

Overview

The Rescue B.R.A.T. is built for departments that need a lower-profile truck with meaningful compartment space and true emergency-vehicle packaging. It is designed to get into garages, alleys, tight streets, and other constrained access points that challenge larger apparatus.

Wareham FD Rescue view 1Wareham FD Rescue view 2Wareham FD Rescue view 3Wareham FD Rescue view 4Wareham FD Rescue view 5Wareham FD Rescue view 6Wareham FD Rescue view 7Wareham FD Rescue view 8Wareham FD Rescue view 9

Typical Specifications

ApplicationsLow-profile parking garage, mini pumper, initial attack, EMS
Available ChassisFord F-550, Dodge 5500
GVWUp to 19,500 lb
Seating CapacityUp to 5
Height Range6'10" to 8'
Width Range90" to 96"
Engine6.7L 300 HP diesel, V8 gas, or V10 gas
Wheels/TiresFirematic super single wheels and Founders MT tires
Fire Rescue BodyAluminum or poly rescue body
TankUp to 400-gallon Pro Poly water tank
PumpUp to 1,000 GPM
Pump & RollAvailable
Foam SystemClass A or B injection
ReelsUp to 2 Hannay aluminum booster reels with 200' of 1" hose
Hose LoadUp to 500' of 3" booster hose

Common Options

  • 1.5-inch front trash line
  • Elkhart Sidewinder or Akron FireFox deck gun
  • Protection reel on the passenger side
  • 12-volt air compressor with 5-gallon reservoir
  • Telescoping scene lights
  • Whelen LED warning package
  • Portable front/rear winch access

Product Pairing Note

This page uses the Wareham FD apparatus as a representative example for the Rescue family while the spec table defines the broader product line.
