Patrol representative apparatus

Firematic B.R.A.T.

Patrol

Fast-attack utility response for urban incidents, roadside work, and rural field fires.

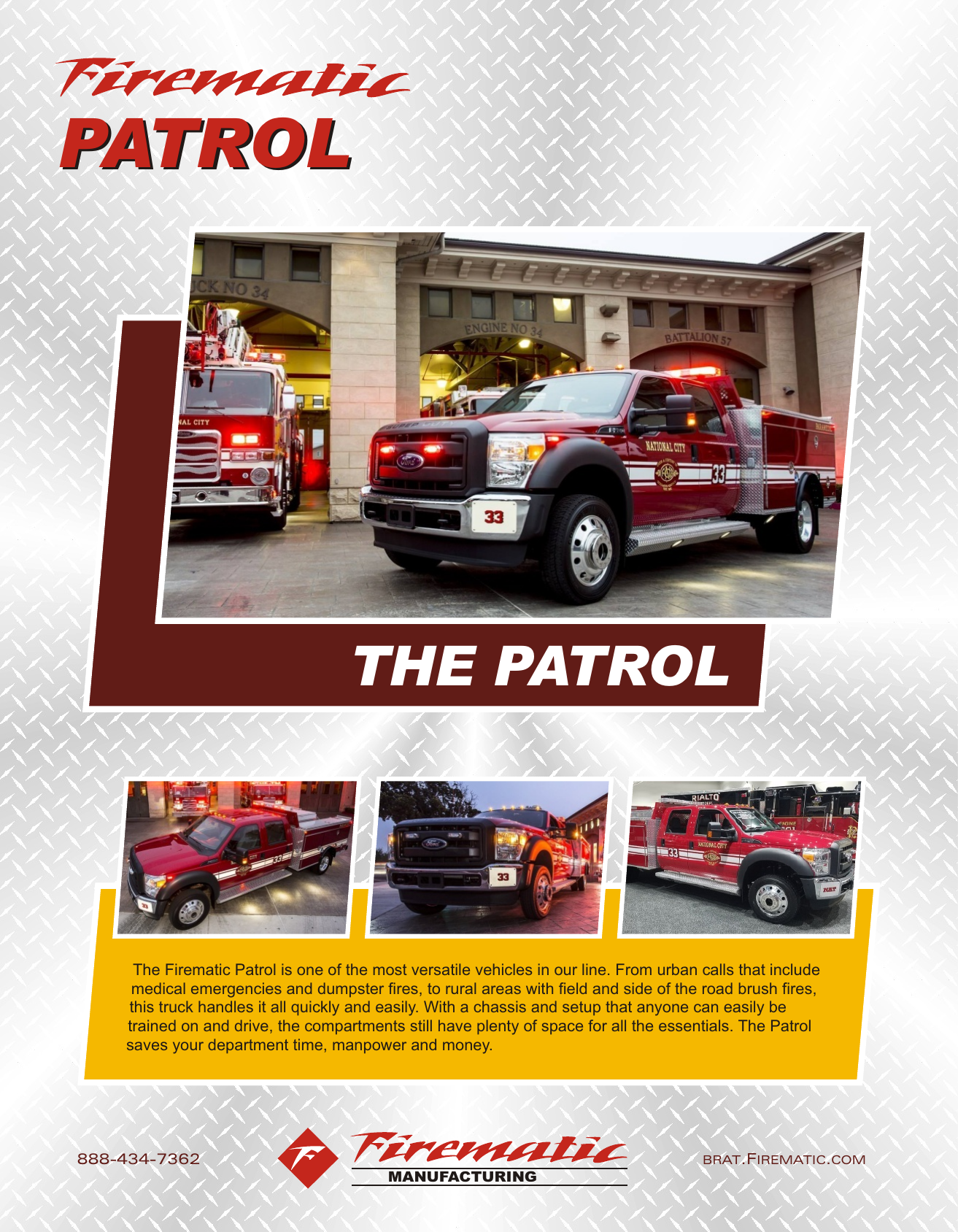

Download LiteratureBrowse Patrol deliveries

Overview

The Patrol is the multi-role end of the B.R.A.T. family. It is intended for departments that need one truck to cover medical assists, roadside incidents, dumpster fires, and quick brush response without stepping up to a larger apparatus footprint.

Los Angeles Fire Department Patrol view 1Los Angeles Fire Department Patrol view 2Los Angeles Fire Department Patrol view 3Los Angeles Fire Department Patrol view 4Los Angeles Fire Department Patrol view 5Los Angeles Fire Department Patrol view 6Los Angeles Fire Department Patrol view 7Los Angeles Fire Department Patrol view 8Los Angeles Fire Department Patrol view 9

Typical Specifications

ApplicationsUrban, rural, and fast attack
Available ChassisFord F-350/450/550 and Dodge 3500/4500/5500
GVWUp to 19,500 lb
Seating CapacityUp to 5
Height RangeUp to 8'
Width Range94" to 96"
Engine6.7L 300 HP diesel, V8 gas, or V10 gas
Wheels/TiresFactory dual wheels and tires
BodyAluminum compartment body with swing-out doors
Tank250-gallon Pro Poly water tank
PumpDarley gas pump
Reel1 Hannay aluminum booster reel with 150' of 1" hose
Rear Step & HitchHeavy-duty Class 4 steel hitch
Hose LoadUp to 300' of 1.5" discharge hose
Lighting PackageWhelen LED package

Common Options

  • Super single wheels and Founders MT tires
  • Warn Trans4mer front brush guard
  • Elkhart, Akron, or TFT deck gun
  • Around-the-pump or injected foam
  • Fire Research or Whelen telescoping lights
  • Electric winch from 9,500 to 16,500 lb

Product Pairing Note

This page uses the Los Angeles Fire Department apparatus as a representative example for the Patrol family while the spec table defines the broader product line.
