Original B.R.A.T. representative apparatus

Firematic B.R.A.T.

Original B.R.A.T.

The purpose-built off-road attack platform that established the B.R.A.T. line.

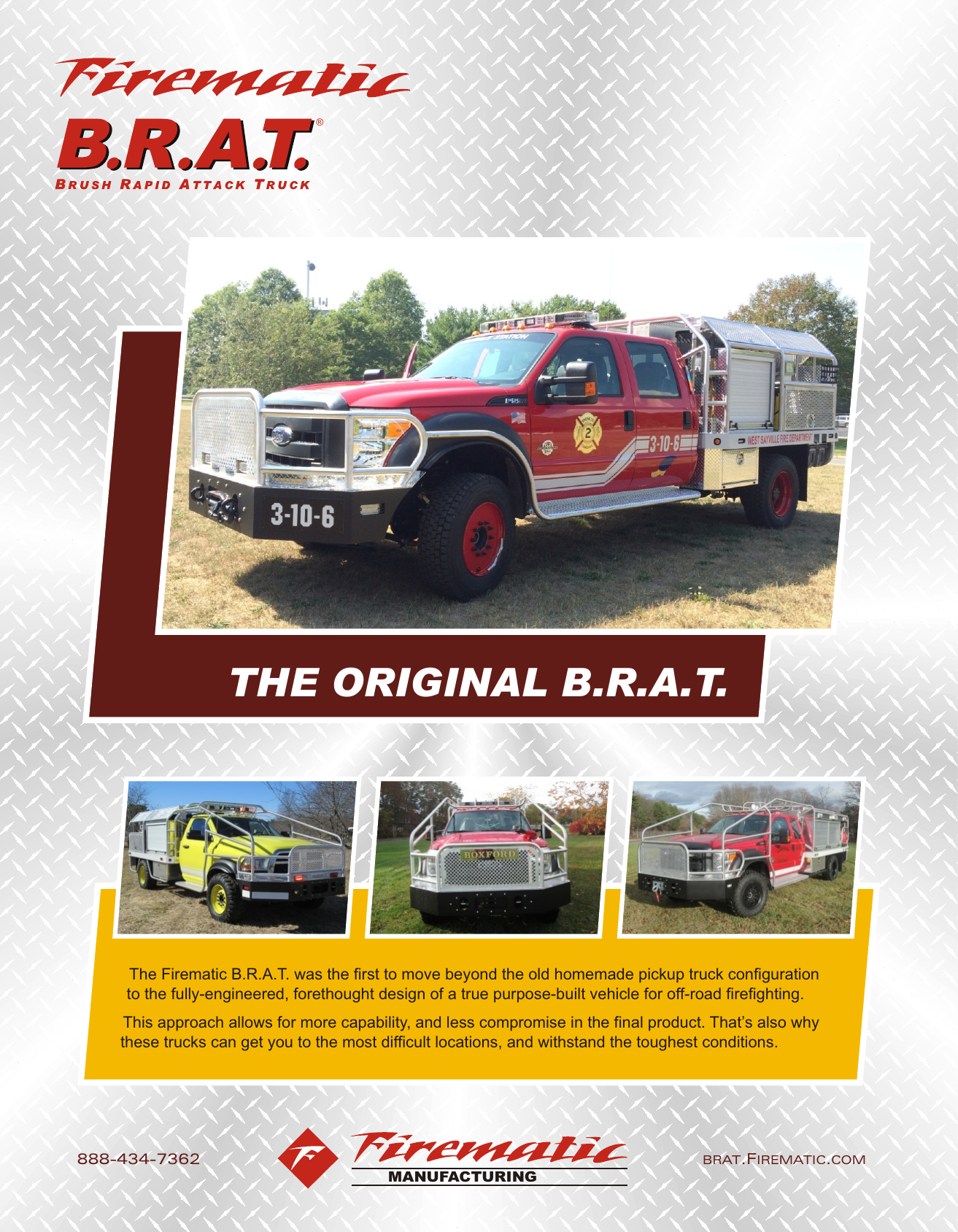

Download LiteratureBrowse Original B.R.A.T. deliveries

Overview

The Original B.R.A.T. is built for departments that need a true off-road firefighting truck instead of a compromised pickup conversion. It is engineered to carry more capability into rough terrain while protecting the chassis, the drivetrain, and the crew.

Carver FD Original B.R.A.T. view 1Carver FD Original B.R.A.T. view 2Carver FD Original B.R.A.T. view 3Carver FD Original B.R.A.T. view 4Carver FD Original B.R.A.T. view 5Carver FD Original B.R.A.T. view 6Carver FD Original B.R.A.T. view 7Carver FD Original B.R.A.T. view 8Carver FD Original B.R.A.T. view 9

Typical Specifications

ApplicationsBrush rapid attack, initial attack, mini pumper, severe weather
Available ChassisFord F-450, F-550, Dodge 5500
GVWUp to 19,500 lb
Seating CapacityUp to 5
Height RangeUp to 8'
Width Range90" to 96"
Engine6.7L 300 HP diesel, V8 gas, or V10 gas
Wheels/TiresFirematic super single wheels and Founders MT tires
Roll CageFull investment-protection aluminum roll cage
Flat BedHeavy-duty aluminum flat bed
TankUp to 500-gallon Pro Poly water tank
Pump60 HP Deutz diesel with Hale 30FS pump; up to 500 GPM @ 150 PSI
Pump & RollAvailable
Foam SystemClass A or B injection
ReelsUp to 2 Hannay aluminum booster reels with 200' of 1" hose
Hose LoadUp to 1,000' of 3" supply hose

Common Options

  • 1.5-inch front trash line
  • Elkhart Sidewinder or Akron FireFox deck gun
  • Protection reel on the passenger side
  • 12-volt air compressor with 5-gallon reservoir
  • Telescoping scene lights
  • Whelen LED warning package
  • Portable front/rear winch access

Product Pairing Note

This page uses the Carver FD apparatus as a representative example for the Original B.R.A.T. family while the spec table defines the broader product line.
