B.R.A.T. Delivery

East Northport FD

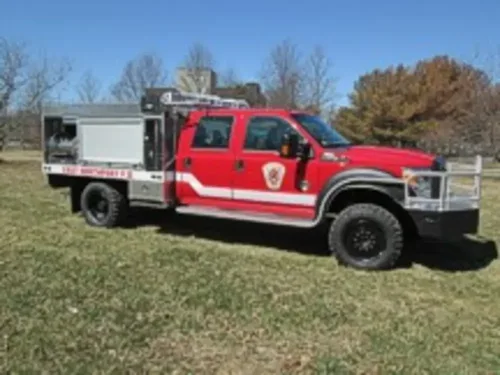

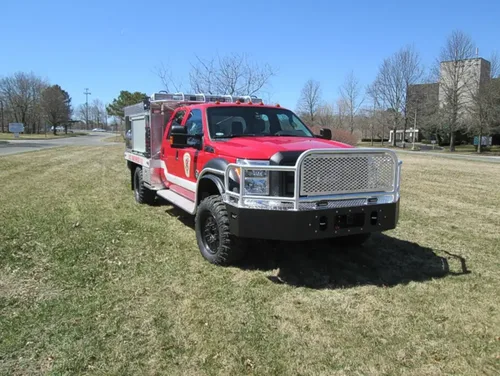

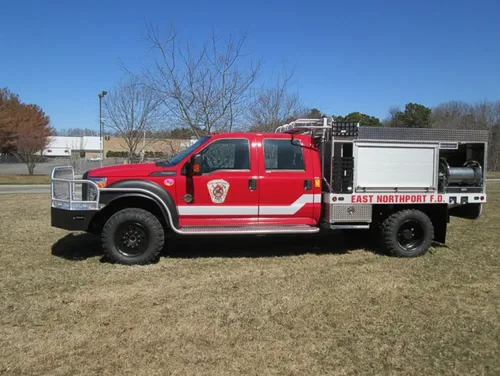

Original B.R.A.T. delivered in East Northport, New York.

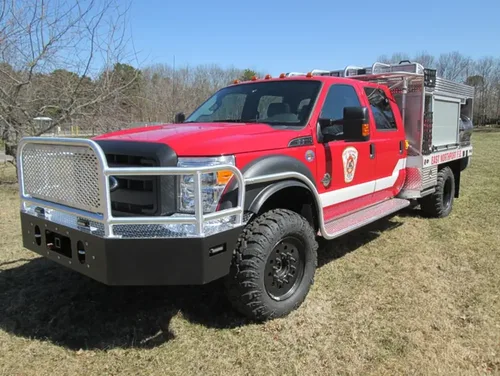

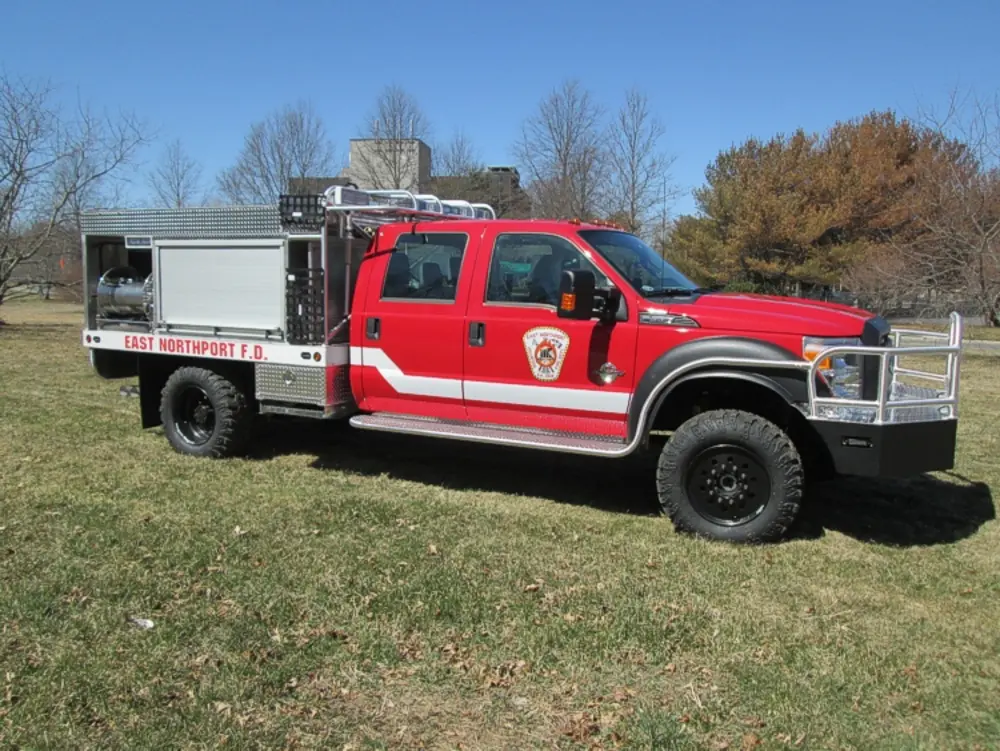

This original B.R.A.T. was delivered to East Northport FD in East Northport, New York and is configured around 300 GPM pump, 400-gallon tank, F550 chassis, 4x4.

  • Department East Northport FD
  • Location East Northport, New York
  • Configuration Original B.R.A.T.
  • Delivery Date 4/12/13

Specs Summary

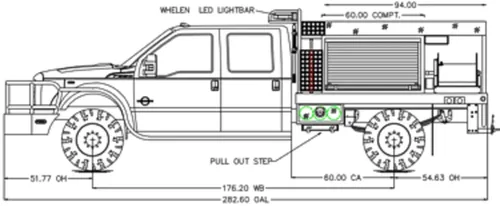

Drawing PDF

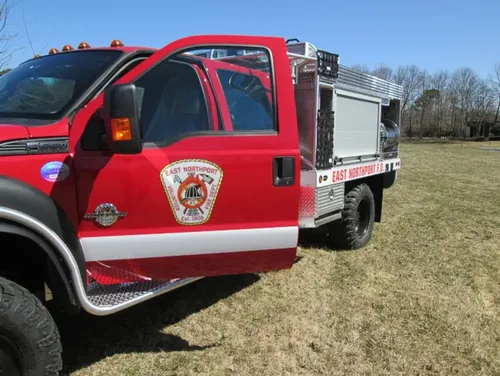

  • 2012 Ford F550 4 Door Crew Cab 4x4 Chassis with 19,500 lbs. GVW

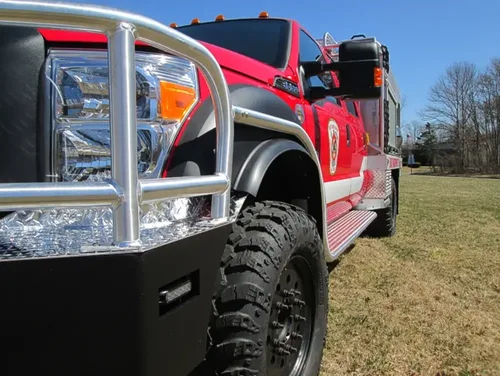

  • Super Single Aggressive Tread 19.5" Interco Irok Tires

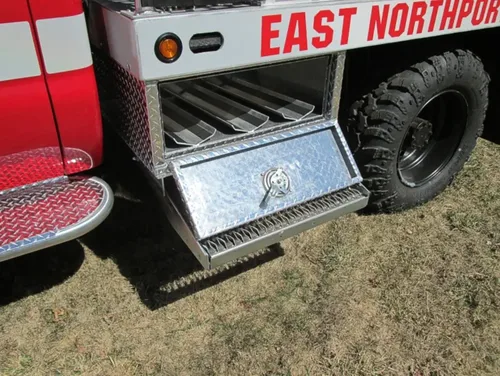

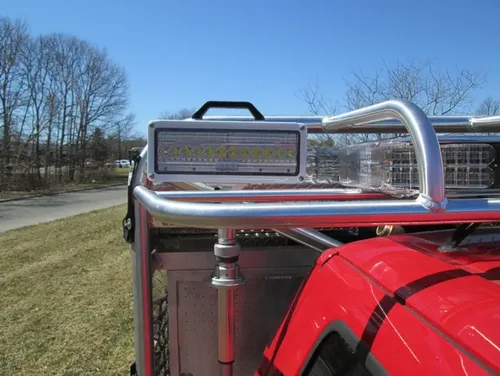

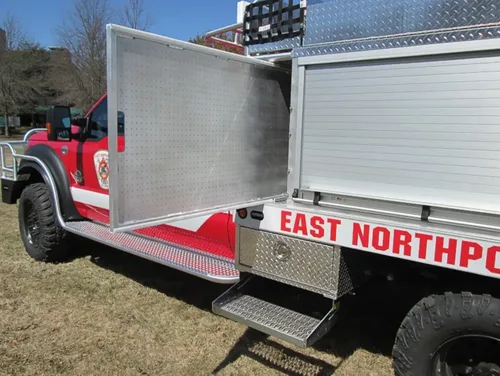

  • Heavy Duty Aluminum Fabricated Flatbed with FEA Tested Roll Bar
  • Pro Poly 400 Gallon Protector Tank

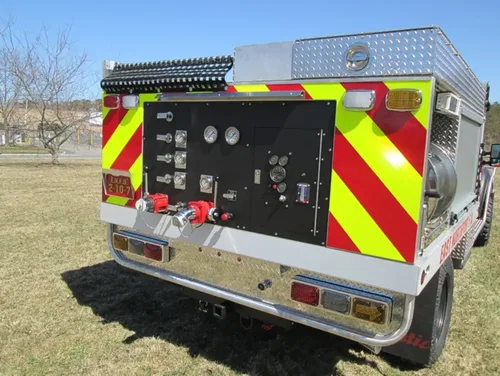

  • Hale 30FS, 300 GPM Pump

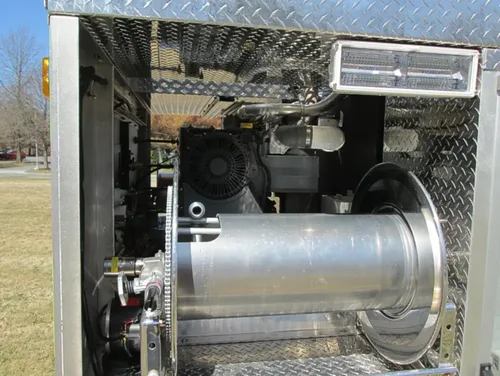

  • Deutz 4 Cylinder 62 hp Diesel Pump Engine

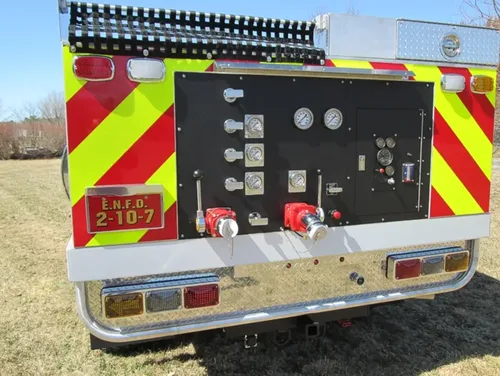

  • Elkhart Brass Valves and S/S Manifold
  • Two (2) 1 ¾" Crosslays
  • Electric Primer

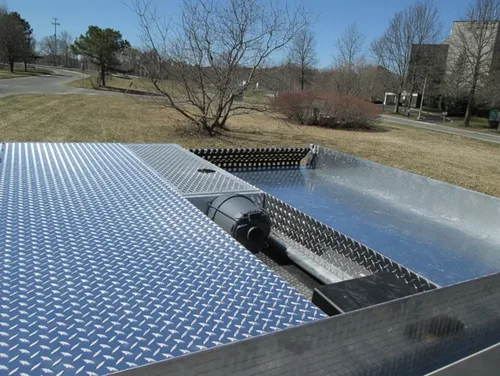

  • Large 3" Deadlay Hose Bed Area

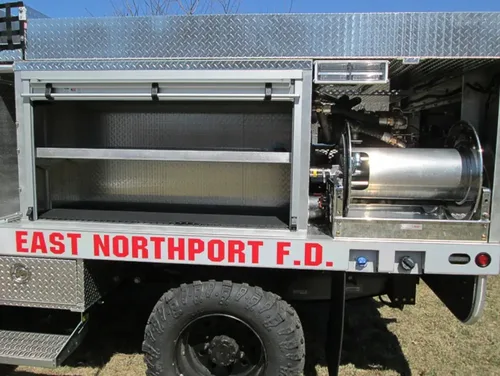

  • Two (2) Electric Hannay Reels with 200' of 1" Booster on each rear deck corner

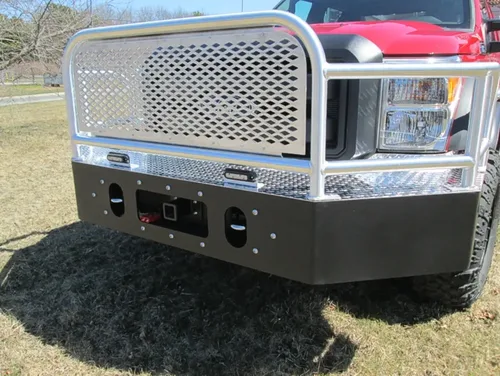

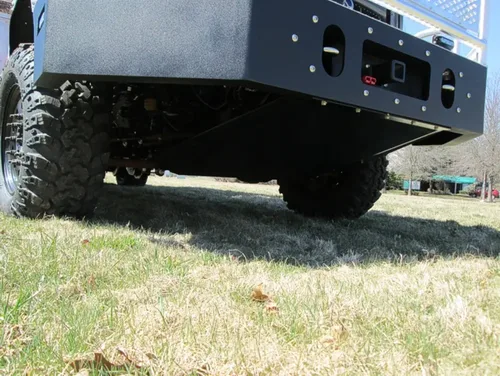

  • Front Custom Heavy Duty Firematic Extended Bumper

Opens an in-page PDF viewer. Use the drawing link above for a direct PDF tab.

Photo Gallery (40)
