B.R.A.T. Delivery
Morris Plains Fire Department
Mini-Pumper Rescue delivered in Morris Plains, NJ.
This mini-pumper rescue was delivered to Morris Plains Fire Department in Morris Plains, NJ and is configured around 1500 GPM pump, 300-gallon tank, F-550 chassis, 4x4.
Specs Summary

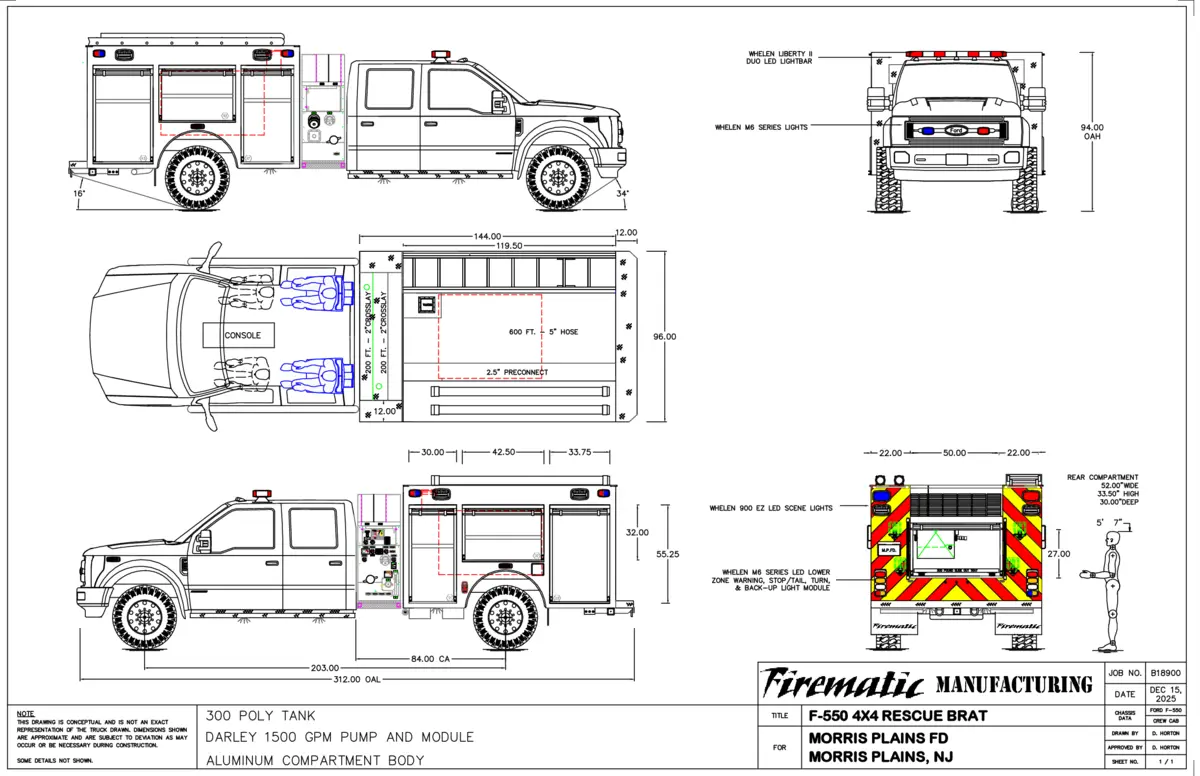

Drawing PDF- 2026 Ford F-550 4 Door 4x4
- 6.7L Power Stroke 330 HP Diesel Engine
- 10-Speed Automatic Overdrive Transmission
- Firematic Aluminum Body with 7 Compartments
- ROM Roll-up Doors with Painted Finish
- Firematic Founders 305/70R19.5MT Super Single Tires with 2.5 inch Lift
- 300 Gallon Poly Water Tank
- Darley PSM 1500 GPM Midship Pump with Stainless Plumbing
- Firematic Custom Center Console
- Darley Auto Control Pressure Governor
- Fire Research Tank Vision Water Gauge
- Two 6 inch Side Suctions plus One 2.5 inch Left Auxiliary Suction
